Forged Steel Unions 1000LBS

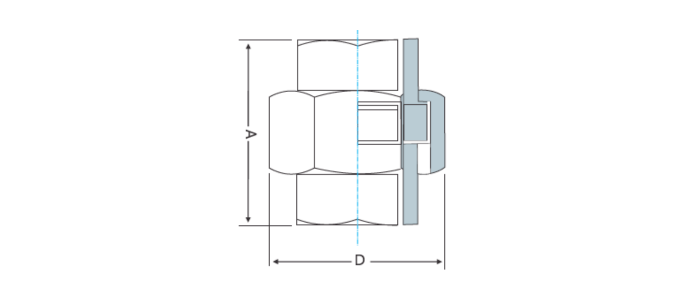

| SIZE | DIMENSIONS (mm) | ||
|---|---|---|---|
| Inches | mm | A | D |
| 1/8 | 6 | 38 | 37 |
| 1/4 | 8 | 44 | 37 |
| 3/8 | 10 | 51 | 37 |
| 1/2 | 15 | 62 | 45 |
| 3/4 | 20 | 70 | 53 |
| 1 | 25 | 80 | 60 |
| 1 1/4 | 32 | 90 | 73 |
| 1 1/2 | 40 | 100 | 85 |
| 2 | 50 | 110 | 100 |
| 2 1/2 | 65 | 120 | 110 |
| 3 | 80 | 135 | 115 |
