Stainless Steel Reducer Elbow (Class-150)
Key Features
- Tolerance ± 1.0mm (8mm-50mm), ± 1.50mm (65mm-100mm)
- Threaded end type optional threads – NPT / BSPT / BSP / ISO7 / 1 / 150228
- Optional Material – 304, 316, 304L, 316L
- Rust Free long life working
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|

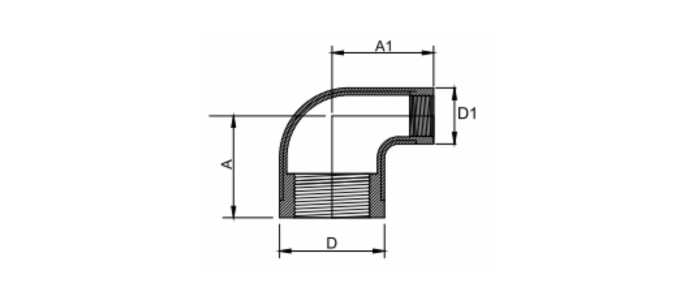

| SIZE X SIZE | A | A1 | D | D1 | |||||
| MM | IN | MM | IN | MM | IN | MM | IN | ||
| 10MM/3/8″ | 8MM/1/4″ | 22.00 | 0.87 | 22.00 | 0.87 | 23.00 | 0.91 | 19.50 | 0.77 |
| 15MM/1/2″ | 8MM/1/4″ | 25.00 | 0.98 | 25.00 | 0.98 | 31.00 | 1.22 | 23.00 | 0.91 |
| 10MM/3/8″ | 25.00 | 0.98 | 25.00 | 0.98 | 31.00 | 1.22 | 23.00 | 0.91 | |
| 20MM/3/4″ | 8MM/1/4″ | 28.00 | 1.10 | 28.00 | 1.10 | 36.00 | 1.42 | 31.00 | 1.22 |
| 10MM/3/8″ | 28.00 | 1.10 | 28.00 | 1.10 | 36.00 | 1.42 | 31.00 | 1.22 | |
| 15MM/1/2″ | 28.00 | 1.10 | 28.00 | 1.10 | 36.00 | 1.42 | 31.00 | 1.22 | |
| 25MM/1″ | 15MM/1/2″ | 32.00 | 1.26 | 34.00 | 1.34 | 44.00 | 1.73 | 31.00 | 1.22 |
| 20MM/3/4″ | 35.00 | 1.38 | 37.00 | 1.46 | 44.00 | 1.73 | 36.00 | 1.42 | |
| 32MM/11/4″ | 15MM/1/2″ | 34.00 | 1.34 | 39.00 | 1.54 | 54.00 | 2.13 | 31.00 | 1.22 |
| 20MM/3/4″ | 36.00 | 1.42 | 41.00 | 1.61 | 54.00 | 2.13 | 36.00 | 1.42 | |
| 25MM/1″ | 40.00 | 1.57 | 42.00 | 1.65 | 54.00 | 2.13 | 44.00 | 1.73 | |
| 40MM/11/2″ | 15MM/1/2″ | 35.00 | 1.38 | 43.00 | 1.69 | 61.00 | 2.40 | 31.00 | 1.22 |
| 20MM/3/4″ | 39.00 | 1.54 | 46.00 | 1.81 | 61.00 | 2.40 | 36.00 | 1.42 | |
| 25MM/1″ | 42.00 | 1.65 | 46.00 | 1.81 | 61.00 | 2.40 | 44.00 | 1.73 | |
| 32MM/11/4″ | 46.00 | 1.81 | 48.00 | 1.89 | 61.00 | 2.40 | 54.00 | 2.13 | |
| 50MM/2″ | 15MM/1/2″ | 49.00 | 1.93 | 36.00 | 1.42 | 74.00 | 2.91 | 31.00 | 1.22 |
| 20MM/3/4″ | 50.00 | 1.97 | 41.00 | 1.61 | 74.00 | 2.91 | 36.00 | 1.42 | |
| 25MM/1″ | 44.00 | 1.73 | 51.00 | 2.01 | 74.00 | 2.91 | 44.00 | 1.73 | |
| 32MM/11/4″ | 48.00 | 1.89 | 53.00 | 2.09 | 74.00 | 2.91 | 54.00 | 2.13 | |
| 40MM/11/2″ | 51.00 | 2.01 | 54.00 | 2.13 | 74.00 | 2.91 | 61.00 | 2.40 | |
| 65MM/21/2″ | 40MM/11/2″ | 55.00 | 2.17 | 64.00 | 2.52 | 90.00 | 3.54 | 74.00 | 2.91 |
| 50MM/2″ | 61.00 | 2.40 | 66.00 | 2.60 | 90.00 | 3.54 | 74.00 | 2.91 | |
| 80MM/3″ | 50MM/2″ | 64.00 | 2.52 | 73.00 | 2.87 | 103.00 | 4.06 | 74.00 | 2.91 |
| 65MM/21/2″ | 72.00 | 2.83 | 76.00 | 2.99 | 103.00 | 4.06 | 90.00 | 3.54 | |
| 100MM/4″ | 80MM/3″ | 84.00 | 3.31 | 91.00 | 3.58 | 130.00 | 5.12 | 103.00 | 4.06 |
NOTE: Due to continues developments & upgrades, data mentioned above is subject to change without any notice.
