Stainless Steel Reducer Socket (MSS SP-114)

Key Features

  • Tolerance ± 1.0mm (8mm-50mm), ± 1.50mm (65mm-100mm)
  • Threaded end type optional threads – NPT / BSPT / BSP / ISO7 / 1 / 150228
  • Optional Material – 304, 316, 304L, 316L
  • Rust Free long life working
Technical Specification

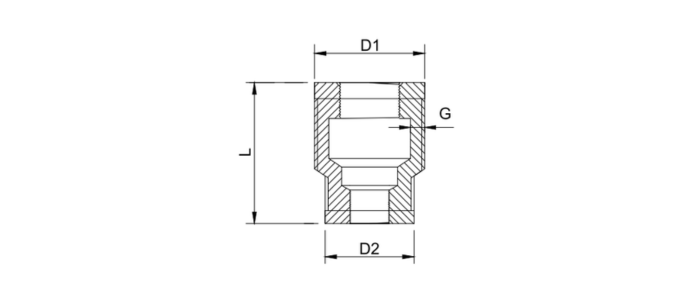

SIZE X SIZE L D1 D2
MM IN MM IN MM IN
10MM/3/8″ 8MM/1/4″ 32.00 1.26 25.65 1.01 21.34 0.84
15MM/1/2″ 8MM/1/4″ 35.05 1.38 30.48 1.20 19.05 0.75
10MM/3/8″ 35.05 1.38 30.48 1.20 21.34 0.84
20MM/3/4″ 8MM/1/4″ 38.10 1.50 37.08 1.46 19.05 0.75
10MM/3/8″ 38.10 1.50 37.08 1.46 21.34 0.84
15MM/1/2″ 38.10 1.50 37.08 1.46 30.48 1.20
25MM/1″ 8MM/1/4″ 41.15 1.62 44.96 1.77 19.05 0.75
10MM/1/4″ 41.15 1.62 44.96 1.77 21.34 0.84
15MM/1/2″ 41.15 1.62 44.96 1.77 30.48 1.20
20MM/3/4″ 41.15 1.62 44.96 1.77 37.08 1.46
32MM/1 1/4″ 15MM/1/2″ 50.80 2.00 54.61 2.15 30.48 1.20
20MM/3/4″ 50.80 2.00 54.61 2.15 37.08 1.46
25MM/1″ 50.80 2.00 54.61 2.15 44.96 1.77
40MM/1 1/2″ 15MM/1/2″ 53.85 2.12 61.72 2.43 30.48 1.20
20MM/3/4″ 53.85 2.12 61.72 2.43 37.08 1.46
25MM/1″ 53.85 2.12 61.72 2.43 44.96 1.77
32MM/11/4″ 53.85 2.12 61.72 2.43 54.61 2.15
50MM/2″ 15MM/1/2″ 63.50 2.50 75.18 2.96 30.48 1.20
20MM/3/4″ 63.50 2.50 75.18 2.96 37.08 1.46
25MM/1″ 63.50 2.50 75.18 2.96 44.96 1.77
32MM/11/4″ 63.50 2.50 75.18 2.96 54.61 2.15
40MM/11/2″ 63.50 2.50 75.18 2.96 61.72 2.43
65MM/2 1/2″ 25MM/1″ 82.55 3.25 90.00 3.54 44.96 1.77
32MM/11/4″ 82.55 3.25 90.00 3.54 54.61 2.15
40MM/11/2″ 82.55 3.25 90.00 3.54 61.72 2.43
50MM/2″ 82.55 3.25 90.00 3.54 75.18 2.96
80MM/3″ 25MM/1″ 93.47 3.68 103.00 4.06 44.96 1.77
32MM/11/4″ 93.47 3.68 103.00 4.06 54.61 2.15
40MM/11/2″ 93.47 3.68 103.00 4.06 61.72 2.43
50MM/2″ 93.47 3.68 103.00 4.06 75.18 2.96
65MM/21/2″ 93.47 3.68 103.00 4.06 90.00 3.54
40MM/11/2″ 111.25 4.38 130.00 5.12 61.72 2.43
50MM/2″ 111.25 4.38 130.00 5.12 75.18 2.96
65MM/21/2″ 111.25 4.38 130.00 5.12 90.00 3.54
NOTE: Due to continues developments & upgrades, data mentioned above is subject to change without any notice.
