GY-HSJ HSS Parallel Shank Long Drills Ground Flute

As per IS: 5102

HSS Straight Shank Long Drills. Engineered for industrial-grade performance, these drills feature an extended flute length specifically designed for deep-hole drilling and applications involving drill bushings.

Manufactured from premium High-Speed Steel (HSS) and processed with advanced heat-treatment technology, these bits provide the consistent hardness and wear resistance required for high-volume production environments.

Key Features

  • Extended Reach: The long-flute design ensures efficient chip evacuation when drilling deep holes, preventing clogging and overheating.
  • Industrial Precision: Produced on advanced CNC machines to guarantee accurate geometry and strict adherence to international standards.
  • Enhanced Tool Life: Optimized for a higher “holes-per-drill” ratio, significantly reducing operational costs and downtime.
  • Versatile Point Angles: Available in 118° and 135° point angles to suit various material hardness levels and self-centering requirements.
Technical Specifications
  • Standards: IS 5102 / DIN 340 / BS 328 / ISO.
  • Shank Type: Straight Shank.
  • Applications: Ideal for use in Automobile manufacturing, Machine Tool production, CNC shops, and VMC machining centers.

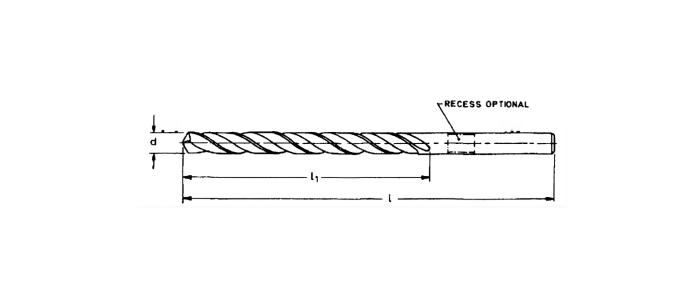

TECHNICAL SPECIFICATION FOR COARSE PITCH
Size-Diameter (mm) Size-Diameter (inch) Length mm (flute) Length mm (overall)
1.00 33 56
1.10 37 60
1.19 3/64 41 65
1.20 41 65
1.30 41 65
1.40 45 70
1.50 45 70
1.59 1/16 50 76
1.60 50 76
1.70 50 76
1.80 53 80
1.90 53 80
1.98 5/64 56 85
2.00 56 85
2.10 56 85
2.20 59 90
2.30 59 90
2.38 3/32 62 95
2.40 62 95
2.50 62 95
2.60 62 95
2.70 66 100
2.78 7/64 66 100
2.80 66 100
2.90 66 100
3.00 66 100
3.10 69 106
3.17 1/8 69 106
3.20 69 106
3.30 69 106
3.40 73 112
3.50 73 112
3.57 9/64 73 112
3.60 73 112
3.70 73 112
3.80 78 119
3.90 78 119
3.97 5/32 78 119
4.00 78 119
4.10 78 119
4.20 78 119
4.30 82 126
4.37 11/64 82 126
4.40 82 126
4.50 82 126
4.60 82 126
4.70 82 126
4.76 3/16 87 132
4.80 87 132
4.90 87 132
5.00 87 132
5.10 87 132
5.16 13/64 87 132
5.20 87 132
5.30 87 132
5.40 91 139
5.50 91 139
5.56 7/32 91 139
5.60 91 139
5.70 91 139
5.80 91 139
5.90 91 139
TECHNICAL SPECIFICATION FOR COARSE PITCH
Size-Diameter (mm) Size-Diameter (inch) Length mm (flute) Length mm (overall)
5.95 15/64 91 139
6.00 91 139
6.10 97 148
6.20 97 148
6.30 97 148
6.35 1/4 97 148
6.40 97 148
6.50 97 148
6.60 97 148
6.70 97 148
6.75 17/64 102 156
6.80 102 156
6.90 102 156
7.00 102 156
7.10 102 156
7.14 9/32 102 156
7.20 102 156
7.30 102 156
7.40 102 156
7.50 102 156
7.54 19/64 109 165
7.60 109 165
7.70 109 165
7.80 109 165
7.90 109 165
7.94 109 165
8.00 109 165
8.10 109 165
8.20 109 165
8.30 109 165
8.33 21/64 109 165
8.40 109 165
8.50 109 165
8.60 115 175
8.70 115 175
8.73 11/32 115 175
8.80 115 175
9.00 115 175
9.13 23/64 115 175
9.20 115 175
9.50 115 175
9.52 3/8 121 184
9.80 121 184
9.92 25/64 121 184
10.00 121 184
10.20 121 184
10.32 13/32 121 184
10.50 121 184
10.72 27/64 128 195
10.80 128 195
11.00 128 195
11.11 7/16 128 195
11.20 128 195
11.50 128 195
11.51 29/64 128 195
11.80 128 195
11.91 15/32 134 205
12.00 134 205
12.20 134 205
12.30 31/64 134 205
12.50 134 205
5.90 91 139
TECHNICAL SPECIFICATION FOR COARSE PITCH
Size-Diameter (mm) Size-Diameter (inch) Length mm (flute) Length mm (overall)
12.70 1/2 134 205
12.80 134 205
13.00 134 205
13.10 33/64 134 205
13.20 134 205
13.49 17/32 140 214
13.50 140 214
13.80 140 214
13.89 35/64 140 214
14.00 140 214
14.25 144 220
14.29 9/16 144 220
14.50 144 220
14.68 37/64 144 220
14.75 144 220
15.00 144 220
15.08 19/32 149 227
15.25 149 227
15.50 149 227
15.75 149 227
15.87 5/8 149 227
16.00 149 227
16.25 154 235
16.27 41/65 154 235
16.50 154 235
16.67 21/32 154 235
16.75 154 235
17.00 154 235
17.07 43/64 158 241
17.25 158 241
17.46 11/16 158 241
17.50 158 241
17.75 158 241
17.86 45/64 158 241
18.00 158 241
18.25 162 247
18.26 23/32 162 247
18.50 162 247
18.65 47/64 162 247
18.75 162 247
19.00 162 247
19.05 3/4 166 254
19.25 166 254
19.45 49/64 166 254
19.50 166 254
19.75 25/32 166 254
19.84 166 254
20.00 166 254
20.24 51/64 171 261
20.25 171 261
20.50 171 261
20.64 13/16 171 261
20.75 171 261
21.00 171 261
21.03 53/64 171 261
21.25 176 268
21.43 27/32 176 268
21.50 176 268
21.75 176 268
21.83 55/64 176 268
22.00 176 268
22.22 7/8 176 268
TECHNICAL SPECIFICATION FOR COARSE PITCH
Size-Diameter (mm) Size-Diameter (inch) Length mm (flute) Length mm (overall)
22.25 176 268
22.50 180 275
22.62 57/64 180 275
22.75 180 275
23.00 180 275
23.02 29/32 180 275
23.25 180 275
23.42 59/64 180 275
23.50 180 275
23.75 185 282
23.81 15/16 185 282
24.00 185 282
24.21 61/64 185 282
24.25 185 282
24.50 185 282
24.61 31/32 185 282
24.75 185 282
25.00 63/64 185 282
25.25 190 290
25.40 1 190 290
25.50 190 290
25.75 190 290
25.80 1 1/64 190 290
26.00 190 290
26.19 1 1/32 190 290
26.25 190 290
26.50 190 290
26.59 1 3/64 195 298
26.75 195 298
26.99 1 1/16 195 298
27.00 195 298
27.25 195 298
27.38 1 5/64 195 298
27.50 195 298
27.75 195 298
27.78 1 3/32 195 298
28.00 195 298
28.18 1 7/64 201 307
28.25 201 307
28.50 201 307
28.57 1 1/8 201 307
28.75 201 307
28.97 1 9/64 201 307
29.00 201 307
29.25 201 307
29.37 1 5/32 201 307
29.50 201 307
29.75 201 307
29.77 1 11/64 201 307
30.00 201 307
30.16 1 3/16 207 316
30.25 207 316
30.50 207 316
30.56 1 13/64 207 316
30.75 207 316
30.96 1 7/32 207 316
31.00 207 316
31.25 207 316
31.35 1 15/64 207 316
31.50 207 316
