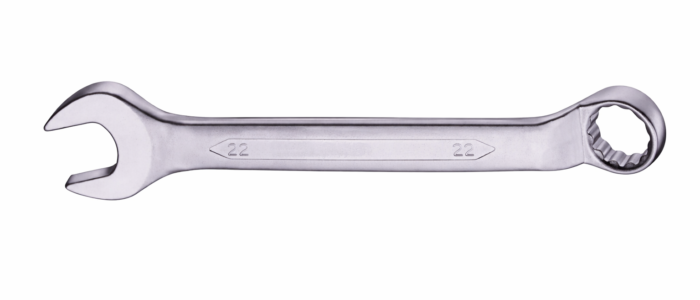

Combination Open & Ring End Spanner Press Panel – DIN 3113B
These versatile tools feature an open end and a ring end, providing the flexibility needed for various mechanical tasks.
Key Features
- Description: Press Panel Spanner Specialized for deep-seated fasteners, these spanners feature a significant 25° ring offset.
- Material: Premium Chrome Vanadium steel, hardened and tempered for maximum strength.
- Finish: Matt Finish (Head Polish Also Available).
- Sizes: Offered in both Metric (5mm to 32mm) and SAE (1/4″ to 1-1/4″) sizes.
| SIZES | LENGTH mm |
WEIGHT gm (Approx.) |
|
|---|---|---|---|
| MM | SAE | ||
| 5 | 86 | 17 | |
| 5.5 | 90 | 17 | |
| 6 | 1/4 | 96 | 19 |
| 7 | 100 | 23 | |
| 8 | 5/16 | 108 | 28 |
| 9 | 120 | 30 | |
| 10 | 3/8 | 135 | 40 |
| 11 | 7/16 | 145 | 50 |
| 12 | 155 | 60 | |
| 13 | 1/2 | 170 | 75 |
| 14 | 9/16 | 180 | 95 |
| 15 | 195 | 110 | |
| 16 | 5/8 | 200 | 125 |
| 17 | 11/16 | 215 | 150 |
| 18 | 231 | 150 | |
| 19 | 3/4 | 244 | 165 |
| 20 | 254 | 185 | |
| 21 | 13/16 | 271 | 210 |
| 22 | 7/8 | 282 | 250 |
| 23 | 282 | 285 | |
| 24 | 15/16 | 307 | 310 |
| 25 | 1 | 335 | 355 |
| 26 | 335 | 420 | |
| 27 | 1-1/16 | 347 | 450 |
| 28 | 1-1/8 | 360 | 455 |
| 29 | 360 | 525 | |
| 30 | 386 | 620 | |
| 32 | 1-1/4 | 409 | 680 |
| NO OF PCS IN SET | SIZE IN MM | WEIGHT GM. |
|---|---|---|
| 6 PC SET | 8,10,12,13,14,17 | 445 |
| 8 PC SET | 8,9,10,11,13,14,17,19 | 650 |
| 12 PC SET | 6,7,8,9,10,11,12,13,14,17,19,22 | 1030 |
| 14 PC SET | 6,7,8,9,10,11,12,13,14,15,17,18,19,22 | 1305 |
| 25 PC SET | 6,7,8,9,10,11,12,13,14,15,17,18,19,20,21, 22,23,24,25,26,27,28,30,32 | 5695 |
