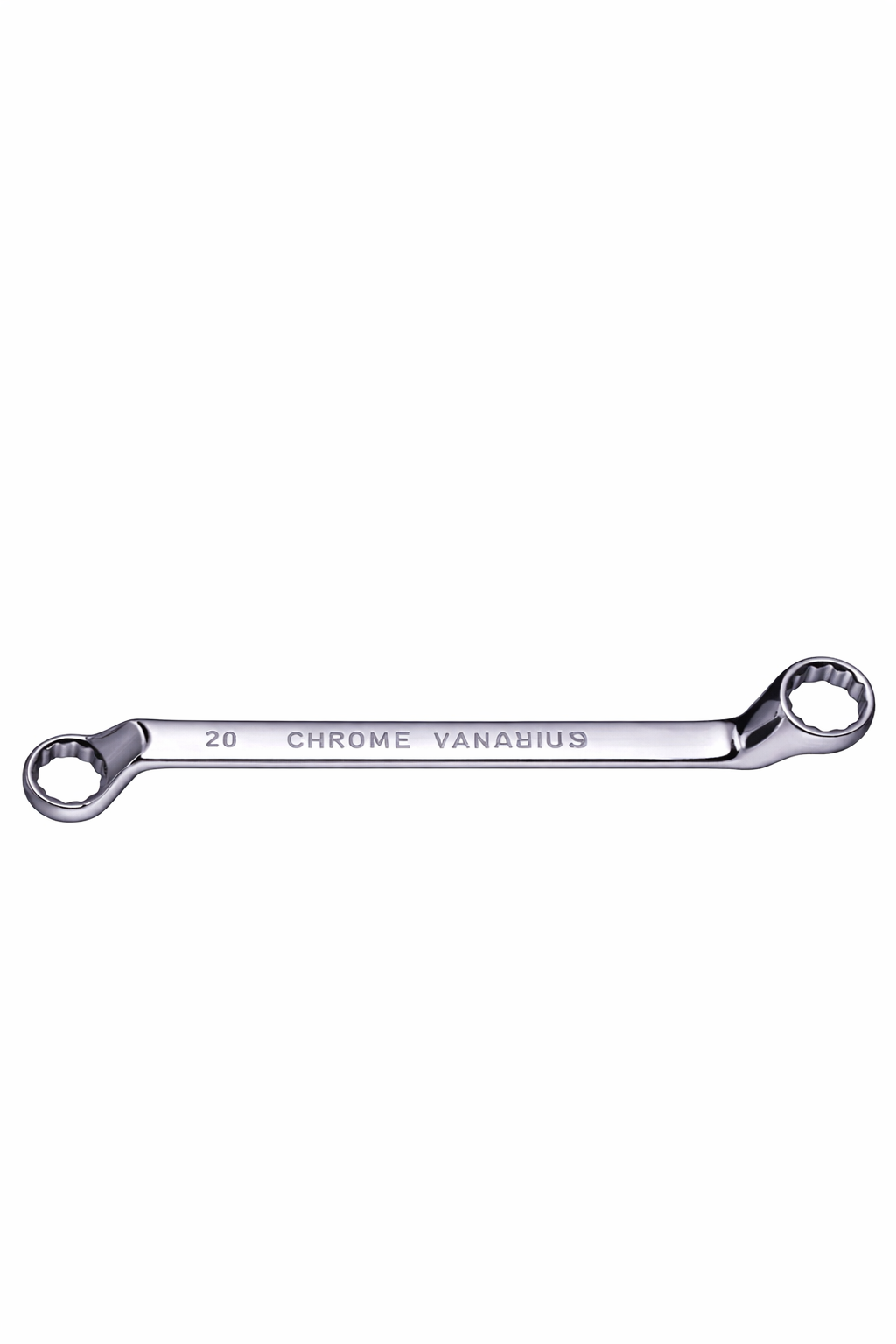

Ring Spanner Recessed Pattern – DIN 897

Key Features

  • Description: These spanners feature a recess panel, Box Ended, Bi-Hexagonal and a shallow offset, making them perfect for work in tighter spaces where a full deep offset isn’t required. They are made from Chrome Vanadium Steel and conform to DIN 897 standards.
  • Material: Available in Chrome Vanadium steel.
  • Sizes: Available in Metric (6X7mm to 30x32mm) sizes.
SIZES LENGTH
mm		 WEIGHT gm
(Approx.)
MM
6 X 7 180 50
8 X 9 192 70
10 X 11 210 90
12 X 13 220 105
14 X 15 230 135
16 X 17 250 165
18 X 19 268 195
20 X 22 295 275
21 X 23 325 305
24 X 27 330 348
25 X 28 340 405
30 X 32 365 520
NO OF PCS IN
SET		 SIZE IN MM WEIGHT GM.
6 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17 622
6 PC SET 6X7, 8X9, , 10X11, 14X15, 16X17, 18X19 715
8 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17, 18X19,
20X22		 1090
12 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17, 18X19,
20X22, 21X23, 24X27, 25X28, 30X32		 2675
