Bench Vice Iron Gator with Fixed Pipe Jaws (Rear Jaw sliding Vice)

The Iron Gator Bench Vice is engineered for professionals who demand maximum gripping power and lifelong durability. Built with a high-strength S.G. Iron (Spheroidal Graphite) casting, this vice is designed to withstand heavy impact and shock without cracking.

Unlike traditional designs, this model features a Rear Jaw Sliding mechanism and integrated Fixed Pipe Jaws, making it a versatile 2-in-1 tool for both flat workpieces and cylindrical piping. The jaws are forged from premium tool carbon steel, then hardened and tempered to ensure a non-slip grip that resists wear even under extreme pressure. With its precision-machined dovetail slide guideways, the Iron Gator provides smooth, accurate operation for every project.

Key Features

  • Body Material: High-grade S.G. Iron Casting for superior shock resistance.
  • Dual Functionality: Integrated fixed pipe jaws for secure tube and pipe clamping.
  • Rear Jaw Sliding: Enhanced stability and precision during heavy-duty use.
  • Hardened Jaws: Tool carbon steel jaws (hardened and tempered) for maximum longevity.
  • Precision Finish: Dovetail slide guideways ensure smooth movement and zero wiggle.

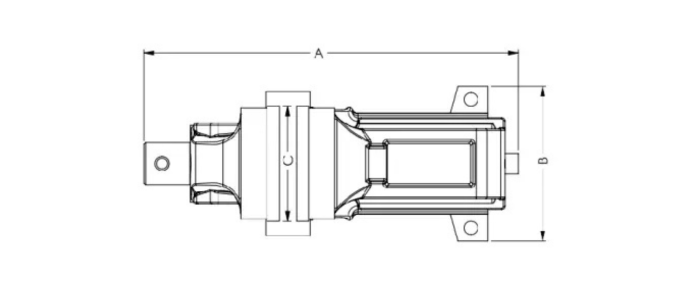

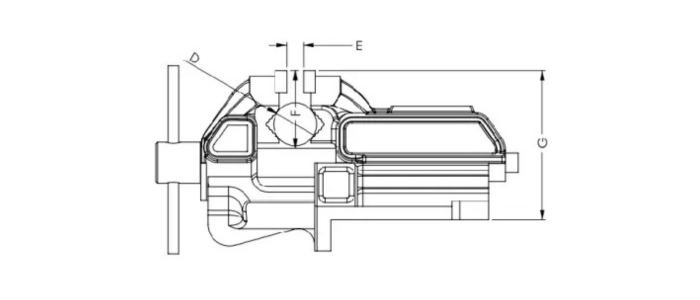

A Max B C (Jaw Width) D (Min/Max) E (Jaw Opening) F (Jaw Depth) G Wt. (KG)
435 110 140 30/40 110 70 139 11
490 140 147 40/45 130 72 145 14
560 152 150 40/48 160 75 150 17
