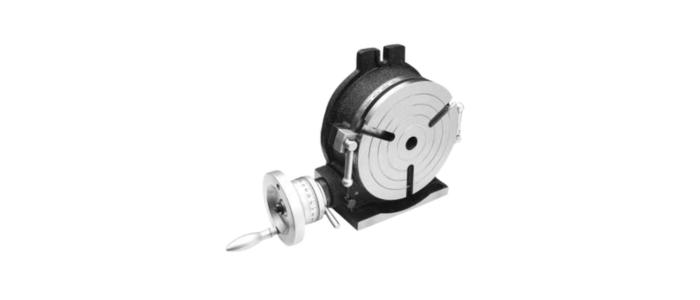

Precision Rotary Vertical & Horizontal Milling Table

Our rotary tables are engineered for maximum versatility and rigid performance in any machining environment. Whether you are performing circular cutting or complex angle settings, this unit delivers the reliability your shop floor demands.

Key Features

      • Rugged Construction: Manufactured from high-grade cast iron for superior vibration dampening and long-term stability.
      • Dual-Orientation Mounting: Provided with two bolt slots for seamless mounting on machine tables in both vertical and horizontal positions.
      • Precision Drive System: Features a 90:1 gear ratio with a hardened and ground worm gear. The assembly includes an eccentric sleeve and thrust bearing races for smooth operation.
      • Rapid Indexing: The worm drive can be quickly disengaged for rapid manual indexing. Indexing plates are included for faster, more accurate settings.
      • Fine Control: The work table is graduated through 360°, where one full turn of the handle moves the table exactly 4°. Includes fine zero-adjustment for precision workpiece alignment.
TECHNICAL SPECIFICATION
SIZE IN INCHES 6 8
Dia. of Table in mm 150 200
Table slot in mm 10 13
Centre Bush Bore MT No.-2 MT No.-3
Worm & Gear Ratio 1:90 1:90
Calibration 2 Min 2 Min
Vertical Overall in mm 210 265
Horizontal Overall in mm 80 110
Width Overall in mm 210 265
Base to centre in mm 100 135
Approx. Weight in kgs. 12 25
