Universal Dividing Head

Maximize Your Milling Capabilities with the Universal Dividing Head
Take the guesswork out of complex angles. The Universal Dividing Head is designed for machinists who need a reliable, “do-it-all” indexing solution. From horizontal clamping to vertical setups, this unit adapts to your specific project needs in seconds.
Why Choose the Universal Dividing Head?

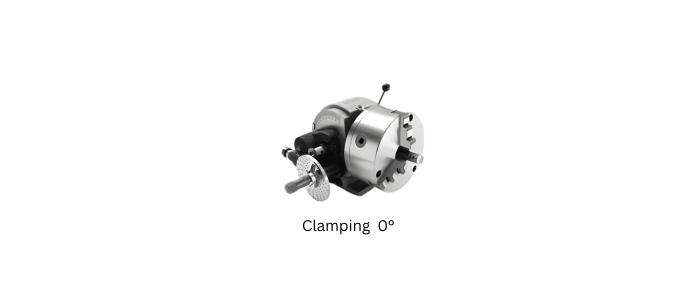

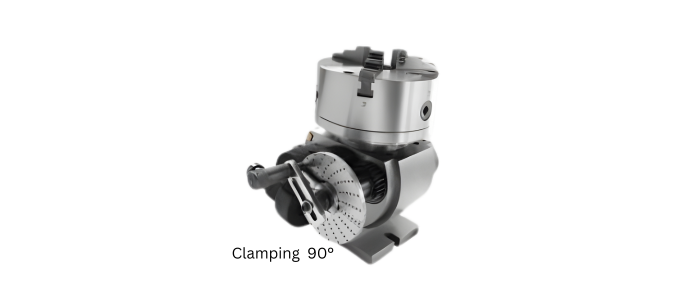

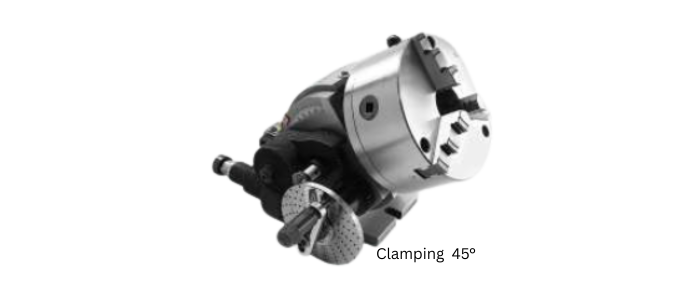

  • Any Angle, Any Time: Swivel and lock your workpiece anywhere between -10° and 90°.
  • Smooth Operation: The 40:1 worm gear ratio provides fine control for meticulous indexing.
  • Built to Last: Hardened components and taper roller bearings ensure long-term accuracy under heavy loads.

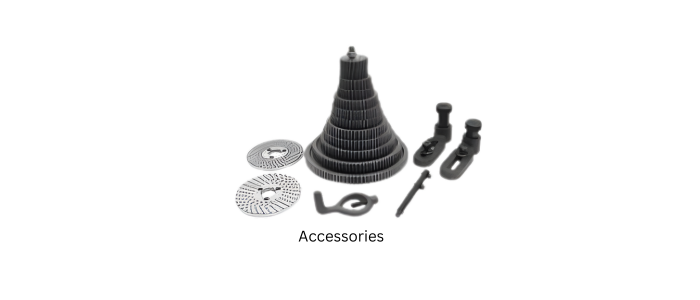

  • Ready to Work: Comes fitted with a self-centering chuck (150/200mm) and full indexing plates.

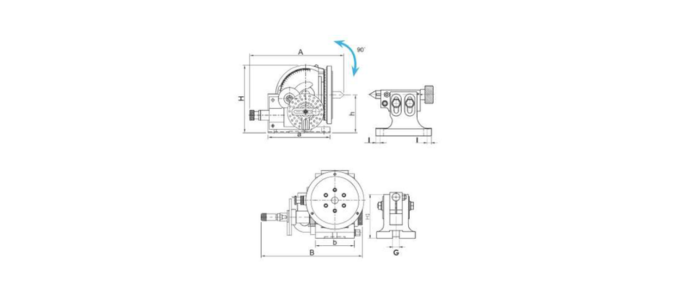

TECHNICAL SPECIFICATION
SIZE IN MM 150 200
A 359 359
B 340 340
H 235 235
I 20 20
a 212 212
b 135 135
g 16 16
h 134 134
Taper of Center MT-4 MT-4
Spindle Through Hole 25 25
