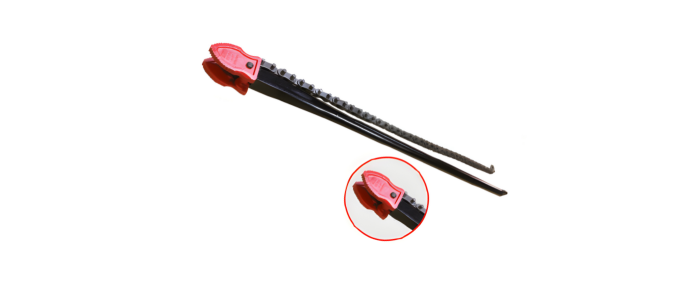

GY-3215 Single Ended Chain Pipe Wrench

The single ended chain pipe wrench is designed for large diameter pipes, featuring an alloy steel hardened single end jaw with a durable steel handle. Equipped with a high tensile leaf chain, it is primarily used in trench work for various pipe fitting jobs, ranging from oil field applications to general-purpose industrial use.

Key Features

  • Heavy-Duty Design: Engineered for large diameter pipe applications ranging from 4 to 18 inches.
  • Hardened Alloy Steel: Features a single-ended jaw made from hardened alloy steel for maximum grip and durability.
  • High-Tensile Leaf Chain: Equipped with a robust leaf chain designed to withstand a breaking load of 25,401 Kgs.
  • Industrial Grade Handle: Includes a solid steel handle providing the necessary leverage for high-torque jobs.
  • Versatile Utility: Ideal for specialized environments such as oil fields and trench work, as well as general-purpose pipe fitting.

Technical Specifications

Prod. No. Size (Inch) Total Length (mm) Chain Length (mm) Chain Breaking Load (Kgs.) Weight (Kgs.) Approx.
GY-3215A 4 – 18 2209 1892 25401 71.000
