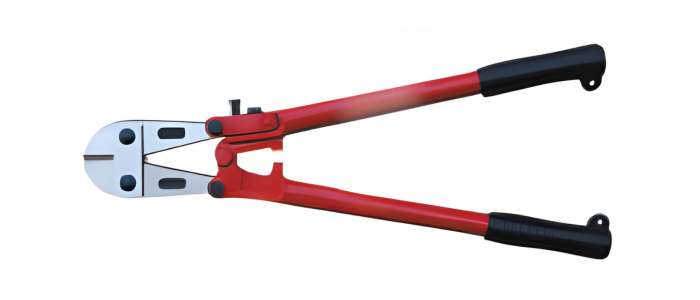

GY-55 Bolt Cutter (Drop Forged)
Bolt cutters are specially designed for cutting rod, wire, mesh, concrete from ties, cables and mainly bolts etc. Quick and easy adjustment with bolt mechanism with slim head permits cutting close to job.
Key Features
- Versatile Size Range: Available in seven different lengths, from compact 12-inch (300mm) models for precision work to 42-inch (1050mm) models for maximum leverage.
- High Cutting Capacity: Engineered to cut soft metals up to 19mm (3/4″) and medium-strength metals up to 14mm (1/2″) in diameter.
- Industrial Durability Built for heavy-duty use with weights ranging from 0.660kg to 7.000kg, providing the necessary heft for professional industrial applications.
- Precision Measurements: All specifications are provided in both Metric (mm/Kgs) and Imperial (Inch) units for global compatibility and easy tool selection.
Technical Specifications
| Prod. No. | Size Inch (mm) | Soft metal mm (Inch) | Med. metal mm (Inch) | Wt. (Kgs.) |
|---|---|---|---|---|
| GY-55A | 12 (300) | 5 (3/16) | 4 (5/32) | 0.660 |
| GY-55B | 14 (350) | 7 (1/4) | 5 (3/16) | 0.840 |
| GY-55C | 18 (450) | 8 (5/16) | 6 (1/4) | 1.380 |
| GY-55D | 24 (600) | 10 (3/8) | 8 (5/16) | 2.200 |
| GY-55E | 30 (750) | 13 (1/2) | 8 (5/16) | 3.750 |
| GY-55F | 36 (900) | 16 (5/8) | 10 (3/8) | 4.820 |
| GY-55G | 42 (1050) | 19 (3/4) | 14 (1/2) | 7.000 |
