Stainless Steel 3pc Screwed End Ball Valve
Key Features
- Robust Construction: 3-piece body design for easy maintenance and long-term durability.
- Precision Manufacturing: Precision investment casted for superior finish and dimensional accuracy.
- Safety First: Equipped with a Blow-Out Proof Stem and an optional Locking Device (available on request).
Primary Applications
- Food & Pharmaceutical Industries
- Compressed Air & Gas Installations
- Oil Refineries
- Chemical & Solvent Industries
- Petrochemical & Process Industries
Technical Specifications
-
- Size Range: 1/2″ to 4″ (DN 15 to DN 100).
- Pressure Rating: PN 40 .
- Casting Method: Precision Investment Cast.
- Thread Standards: BS 21 BSP, BSPT, NPT, DIN 259/2999, ISO 228, & ISO 7/1 .

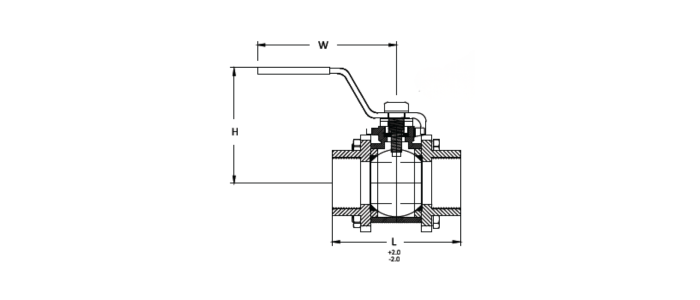

| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| SIZE | L | H | D | W | ||||
| mm | inch | mm | inch | mm | inch | mm | inch | |
| 15MM/1/2″ | 66.00 | 2.60 | 65 | 2.56 | 14.00 | 0.55 | 125 | 4.92 |
| 20MM/3/4″ | 83.40 | 3.28 | 65 | 2.56 | 18.50 | 0.73 | 125 | 4.92 |
| 25MM/1″ | 95.00 | 3.74 | 65 | 2.56 | 24.00 | 0.94 | 155 | 6.10 |
| 32MM/1-1/4″ | 111.20 | 4.38 | 100 | 3.94 | 31.00 | 1.22 | 155 | 6.10 |
| 40MM/1-1/2″ | 130.00 | 5.12 | 100 | 3.94 | 37.00 | 1.46 | 190 | 7.48 |
| 50MM/2″ | 151.00 | 5.94 | 100 | 3.94 | 50.00 | 1.97 | 190 | 7.48 |
| 65MM/21/2″ | 184.00 | 7.24 | 155 | 6.10 | 62.00 | 2.44 | 250 | 9.84 |
| 80MM/3″ | 209.00 | 8.23 | 155 | 6.10 | 74.00 | 2.91 | 250 | 9.84 |
| 100MM/4″ | 234.40 | 9.23 | 180 | 7.09 | 98.00 | 3.86 | 290 | 11.42 |

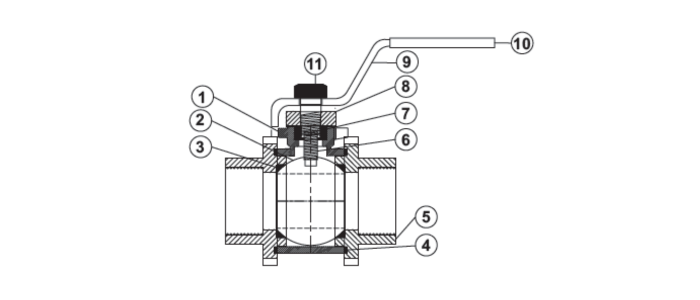

| Technical Specification | ||||
|---|---|---|---|---|
| S.NO | PART’S NAME | MATERIAL | SPECIFICATION | QTY |
| 1 | BODY | STAINLESS STEEL/ CARBON STEEL | ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB | 1 |
| 2 | BALL | STAINLESS STEEL | ASTM A351 GR.CF8 / CF8M / ASTM A276 GR. 304/316 | 1 |
| 3 | BALL SEAT | PTFE | BS 6564 | 2 |
| 4 | CAP/NUT SEAL | PTFE | BS 6564 | 2 |
| 5 | CAP/NUT | STAINLESS STEEL/ CARBON STEEL | ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB | 2 |
| 6 | STEM/SPINDLE | STAINLESS STEEL | ASTM A276 GR. 304/316 | 1 |
| 7 | THRUST WASHER/ PACKING | PTFE | BS 6564 | 2 |
| 8 | GLAND NUT | STAINLESS STEEL | AISI 202/304/316 | 1 |
| 9 | HANDLE | STAINLESS STEEL/ CARBON STEEL | AISI 202/304/316 | 1 |
| 10 | SLEEVE | PVC | BS 6576 | 1 |
| 11 | HANDLE LOCK NUT | STAINLESS STEEL | AISI 304/316 | 1 |
NOTE: Due to continuous developments & upgrades, data mentioned
above is subject to change without any notice.
