Forged Steel Reducing Tee 1000LBS

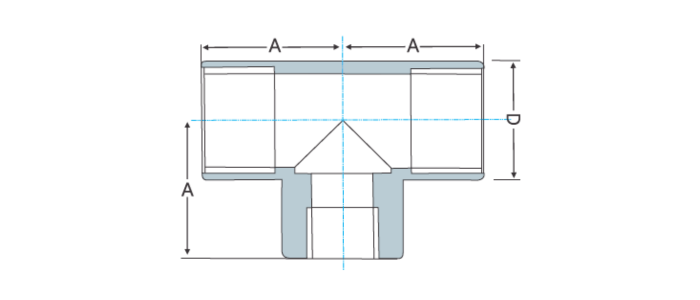

SIZE DIMENSIONS (mm)
Inches mm A D
1/4 x 1/8 8 x 6 23 21
3/8 x 1/8 10 x 6 24 25
3/8 x 1/4 10 x 8 24 25
1/2 x 1/4 15 x 8 33 30
1/2 x 3/8 15 x 10 33 30
3/4 x 1/4 20 x 8 36 37
3/4 x 3/8 20 x 10 36 37
3/4 x 1/2 20 x 15 36 37
1 x 3/8 25 x 10 44 43
1 x 1/2 25 x 15 44 43
1 x 3/4 25 x 20 44 43
1¼ x 1/2 32 x 15 52 51
1¼ x 3/4 32 x 20 52 51
1¼ x 1 32 x 25 52 51
1½ x 1/2 40 x 15 55 58
SIZE DIMENSIONS (mm)
Inches mm A D
1½ x 3/4 40 x 20 55 58
1½ x 1 40 x 25 55 58
1½ x 1¼ 40 x 32 55 58
2 x 1/2 50 x 15 66 74
2 x 3/4 50 x 20 66 74
2 x 1 50 x 25 66 74
2 x 1¼ 50 x 32 66 74
2 x 1½ 50 x 40 66 74
2½ x 1½ 65 x 40 76 87
2½ x 2 65 x 50 76 87
3 x 1 80 x 25 89 102
3 x 1¼ 80 x 32 89 102
3 x 1½ 80 x 40 89 102
3 x 2 80 x 50 89 102
3 x 2½ 80 x 65 89 102
