Forged Steel Tee 3000LBS

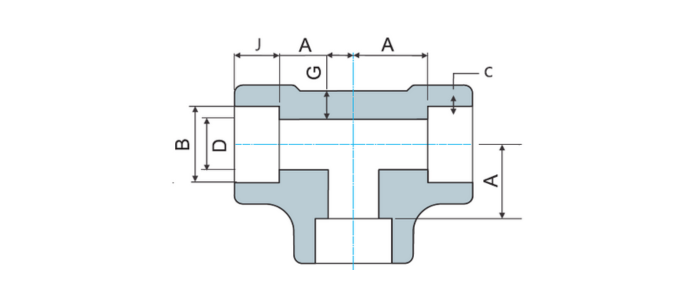

SIZE DIMENSIONS (mm)
Inches mm A B C D G J
MIN MAX MIN MAX MIN AVG MIN MAX MIN MAX
1/8 6 10 12 10.7 10.9 3.2 3.2 6.1 7.6 2.4 10
1/4 8 10 12 14.1 14.4 3.30 3.80 8.5 10.0 3.00 10
3/8 10 12 15 17.5 17.8 3.50 4.00 11.8 13.3 3.20 10
1/2 15 14 17 21.7 22.0 4.1 4.65 15.0 16.6 3.75 10
3/4 20 18 21 27.1 27.3 4.25 4.90 20.0 21.7 3.90 13
1 25 20 24 33.8 34.0 5.00 5.7 25.9 27.4 4.55 13
1¼ 32 25 29 42.5 42.8 5.30 6.05 34.3 35.8 4.85 13
1½ 40 30 34 48.6 48.9 5.55 6.35 40.1 41.7 5.10 13
2 50 36 40 61.1 61.4 6.05 6.95 51.7 53.5 5.55 16
