GY 2000 Standard Jaws Set (Single Guide Soft)

For GY2100, GY2200, GY2300 Chucks

Ensure the continued precision and reliability of your machining operations with our premium Spare Hard Jaws Set. Specifically engineered for compatibility with Type 2100, 2200, and 2300 chucks, these jaws are the ideal solution for replacing worn components or expanding your setup’s versatility.

Key Features

  • High Durability: Manufactured from hardened steel to resist wear and maintain gripping accuracy under heavy-duty industrial use.
  • Versatile Fitment: Available for both 3-jaw and 4-jaw configurations, covering a wide range of chuck sizes from 80mm (3 ¼”) to 400mm (15 ¾”).
  • Application Specific: Choose between Outside Sets (for gripping workpieces on their exterior) and Inside Sets (for internal expansion gripping).
  • Standardized Precision: Designed to meet the exact dimensional requirements of your existing chuck type for a seamless, “drop-in” replacement.
GY 2000 Model Numbers
Chuck Size (MM) Chuck Size (Inches) 3 Jaw Set 4 Jaw Set
80 3 ¼” 4053080 4054080
100 4″ 4053100 4054100
125 5″ 4053125 4054125
160 6 ¼” 4053160 4054160
200 8″ 4053200 4054200
250 10″ 4053250 4054250
315 12 ½” 4053315 4054315
350 13 ¾” 4053350 4054350
400 15 ¾” 4053400 4054400

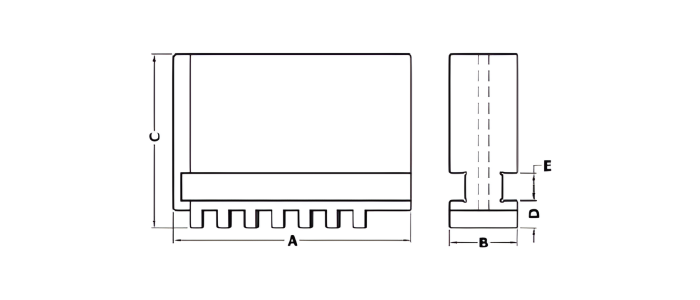

Technical Specification
Size 80mm 100mm 125mm 160mm 200mm 250mm 315mm 350mm 400mm
A 32 42 51 70 85 105 125 140 145
B 11 15 20 20 25 28 32 35 36
C 28 31 40 51 54 63 73 80 92
D 6 6 8 8 9 11 12.7 15.3 15
E 6 6 8 8 10 12 12 15 14
