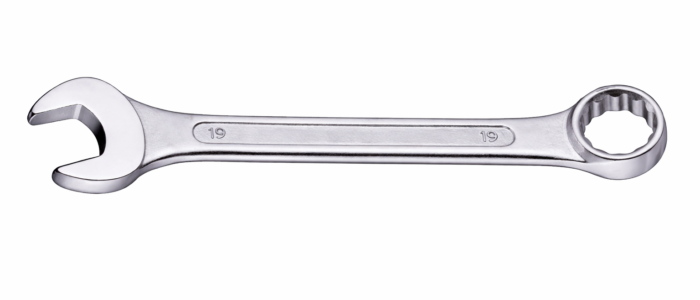

COMBINATION OPEN & RING END SPANNER RECESSED PANEL – DIN 3113A

These versatile tools feature an open end and a ring end, recessed panel providing the flexibility needed for various mechanical tasks.

Description: Engineered for precision and durability, these spanners features a recessed panel design and a ring end with 15° offset for better clearance in tight spaces.
Material & Standard: Available in Carbon or Chrome Vanadium steel, duly hardened and tempered, conforming to DIN-3113A standards.
Finish: Matt Finish (Head Polished Also Available).
Sizes: Metric Sizes range from 6mm to 32mm.

SIZES mm	SIZES SAE	LENGTH mm	WEIGHT gm (Approx.)
6	1/4″	100	18
7		110	20
8	5/16″	120	24
9		130	28
10	3/8″	140	38
11	7/16″	150	48
12		160	55
13	1/2″	170	60
14	9/16″	180	80
15		190	90
16	5/8″	200	105
17	11/1″6	210	115
18		220	130
19	3/4″	230	145
20		240	170
21	13/16″	250	175
22	7/8″	260	185
23		270	230
24	15/16″	280	260
25	1″	290	300
26		300	325
27	1-1/16″	310	350
28	1-1/18″	320	400
29		330	455
30		340	480
32	1-1/4″	360	575
