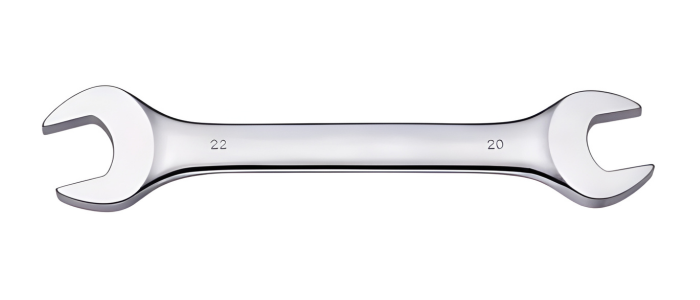

Double Open End Spanner Elliptical Pattern – DIN 3110

Ideal for fast-turning applications where space above fastener is limited.

Key Features

  • Description: Designed with an ergonomic elliptical body for a comfortable grip during extended use. These spanners feature heads set as a 15° to allow for greater range of movement in confined areas.
  • Material: Available in Chrome Vanadium steel.
  • Sizes: Offered in Metric (6X7mm to 30x32mm) sizes.
SIZES
MM		 LENGTH mm WEIGHT gm
(Approx.)
6 X 712224
8 X 914036
8 X 1014036
9 X 1053
10 X 1115756
10 X 1253
10 X 1353
11 X 1376
12 X 1317270
12 X 1476
13 X 1476
13 X 17205121
14 X 1519099
14 X 17120
16 X 17205121
17 X 19222142
18 X 19222142
19 X 22236195
20 X 22236195
21 X 23250253
22 X 24250300
24 X 26265328
24 X 27265328
25 X 28280376
27 X 30485
27 X 32485
30 X 32302413
32 X 36731
34 X 36731
NO OF PCS IN
SET		 SIZE IN MM WEIGHT GM.
6 PC SET 6X7, 8X9, , 10X11, 14X15, 16X17, 18X19 478
6 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17 406
6 PC SET 8X9, , 10X11, 12X13, 14X15, 16X17, 18X19 524
7 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17, 18X19 548
8 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17,
18X19,20X22		 1324
10 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17, 18X19,
20X22, 21X23, 24X27		 1485
10 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17,
18X19,20X22, 24X27, 30X32		 1604
12 PC SET 6X7, 8X9, , 10X11, 12X13, 14X15, 16X17,
18X19,20X22, 21X23, 24X27, 25X28, 30X32		 2204
