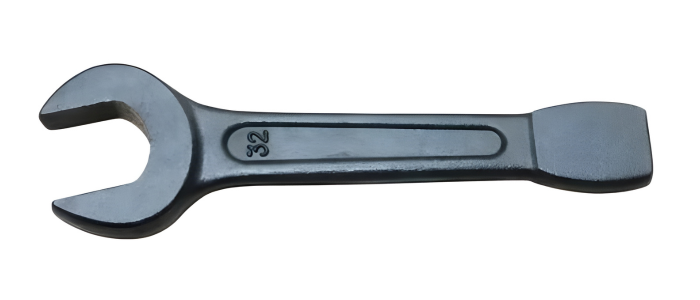

Open Ended Slogging Spanner

Key Features

  • Description: These spanners feature heads set as a 15° to allow for greater range of movement in confined areas.
  • Material: Available in Carbon or Chrome Vanadium steel.
  • Sizes: Offered in both Metric (19mm to 150mm) and SAE (3/4″ to 5″) sizes.
Metric
Size (mm) Wt. (Kgs)
19 0.200
22 0.234
24 0.300
26 0.400
27 0.400
28 0.400
30 0.503
32 0.522
33 0.522
34 0.520
36 0.860
38 1.000
40 1.126
41 1.126
42 1.126
44 1.126
46 1.319
48 1.319
50 1.487
52 1.487
55 2.232
57 2.232
58 2.232
60 2.444
65 2.964
70 4.210
75 4.240
80 5.300
85 5.900
90 7.860
95 7.700
100 11.600
105 11.440
110 14.220
115 13.920
120 17.320
125 15.620
130 18.940
135 18.820
140 23.540
145 23.160
150 23.840
SAE
Size (inch)Wt. (Kgs)
1″0.300
1-1/8″0.400
1-1/4″0.522
1-15/16″0.522
1-3/8″0.860
1-7/16″0.860
1-1/2″1.000
1-5/8″1.126
1-11/16″1.126
1-3/4″1.319
1-13/16″1.319
1-7/8″1.487
2″1.487
2-1/8″2.232
2-3/16″2.232
2-1/4″2.232
2-3/8″2.444
2-1/2″2.444
2-5/8″2.964
2-3/4″4.210
3″4.240
3-1/8″5.300
3-1/4″5.900
3-3/8″5.900
3-1/2″7.860
3-3/4″7.700
4″11.600
5″15.620
