Two Piece Modular Precision Machine Vise

Achieve maximum clamping rigidity and repeatability for high-performance machining.
This high-grade modular vise is engineered for demanding workshop environments where accuracy is non-negotiable. Featuring a low-profile design and “pull-down” jaw technology, it ensures your workpiece stays flat against the bed, effectively eliminating “jaw lift” during heavy-duty operations.

Key Features & Benefits

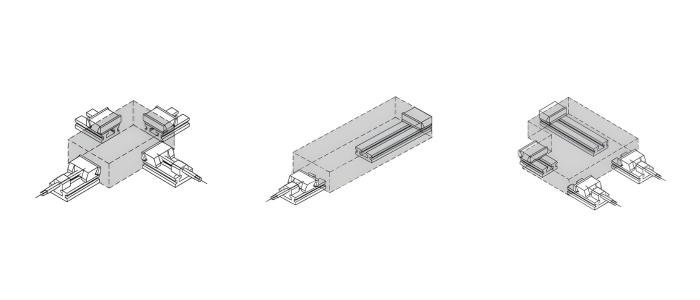

As the bed height is maintained, multiple vises can be used in series so as to hold longer work pieces.
Unlimited Clamping Range
  • Anti-Lift “Pull-Down” Jaws: Specialized jaw geometry pulls the workpiece downward against the bed during clamping, eliminating “jaw lift” and ensuring maximum contact with parallels.
  • Hardened Alloy Steel Construction: All critical parts are case-hardened to HRC 60 ± 2, providing a high-performance surface that resists wear and maintains structural integrity.
  • High-Precision Alignment: Delivers exceptional accuracy with squareness maintained within ± 0.01 / 100 mm for tight-tolerance milling.
  • Modular Series Compatibility: Uniform bed heights allow multiple units to be used in series, providing a stable platform for extra-long workpieces.
  • Hammer-Less Clamping: Designed for rigid, secure clamping without the need for manual hammering to seat parts, improving workflow efficiency.

Technical Specifications

Vise Type Low Profile, Modular (Fixed Base)
Hardness HRC 60 ± 2 (Case Hardened)
Accuracy ± 0.01 / 100 mm (Squareness)
Material High-Grade Alloy Steel (Stabilized)
Clamping Style Anti-Lift / Pull-Down
TECHNICAL SPECIFICATION

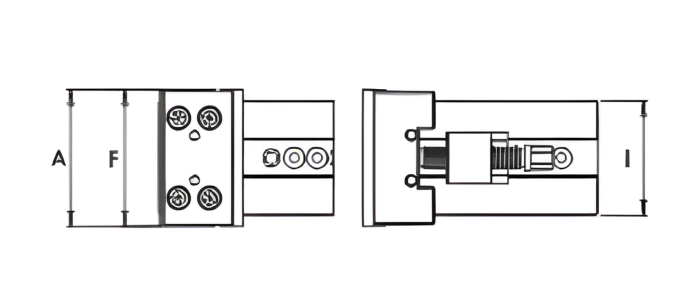

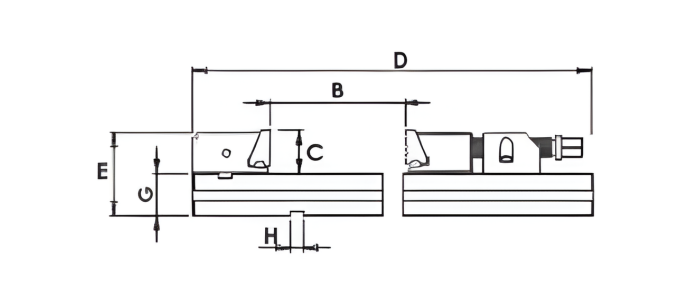

Model MPTMV150 MPTMV200
Jaw Width (A) mm 150 200
Opening (B) mm Unlimited Unlimited
C mm 50 60
D mm Unlimited Unlimited
E mm 98 118
F mm 150 203
G mm 50 57
H mm 16 16
I mm 125 175
Weight (Kgs.) 26 32
Clamping Pressure (KGF) 3000 3500
