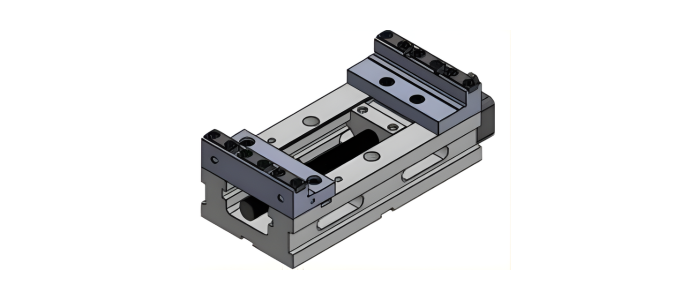

Precision High Grip Machine Vise

Designed specifically for high-stakes milling, grinding, and CNC operations, this vise is built to handle the most demanding machining environments.Our precision vise is designed to give you the stability and accuracy required for modern CNC machining.Stop wrestling with your setup.

Key Features & Benefits

  • Industrial Hardness: Features alloy steel jaws case-hardened to HRC 60 ± 2, paired with a flame-hardened FCD 60 body for superior wear resistance and long-term durability.
  • Extreme Accuracy: Achieve perfect alignment with parallelism and squareness held within ± 0.02 mm / 100 mm.
  • Advanced Versatility: Reversible jaws provide dual clamping areas, significantly expanding your workpiece range.
  • Seamless Setup Integrated tenons and tenon slots ensure effortless, rapid truing of the vise to your machine table.
TECHNICAL SPECIFICATION
Model PHMV150 PHMV150+

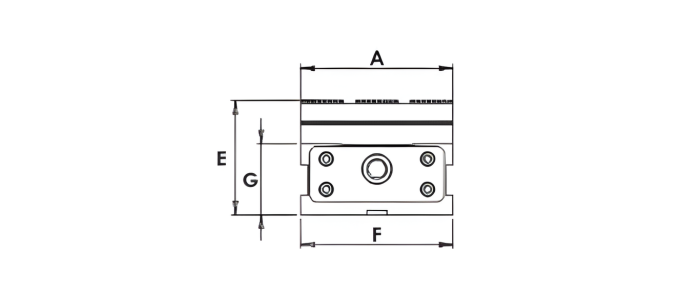

A mm 150 150

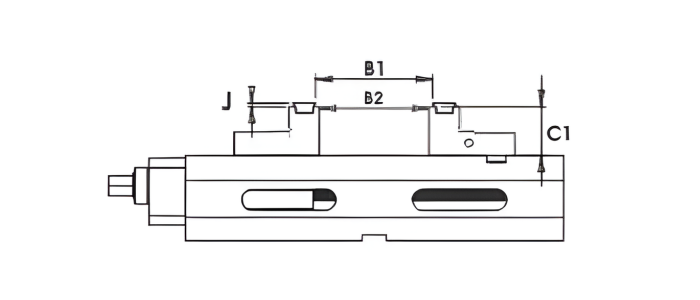

B1 mm 175 215
B2 mm 170 212

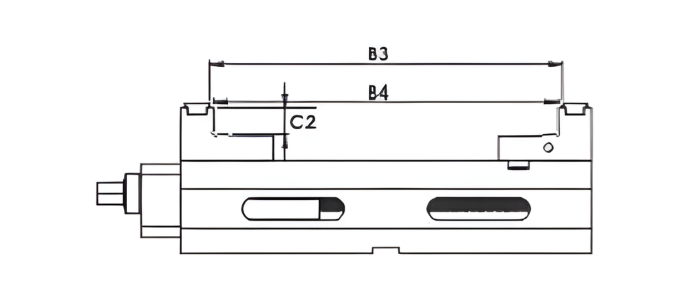

B3 mm 265 400
B4 mm 260 370
C1 mm 40 40
C2 mm 20 20

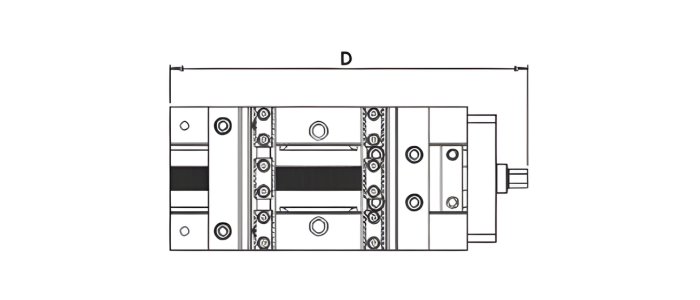

D mm 360 530
E mm 113 130
F mm 151 151
G mm 70 90

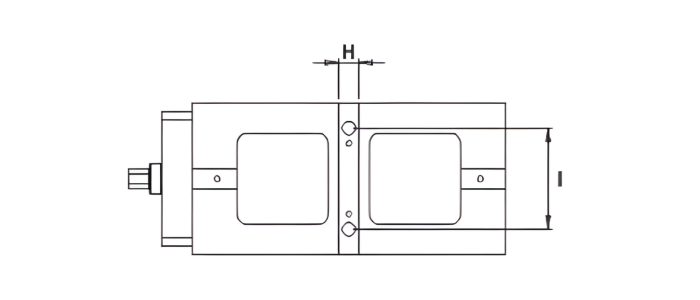

H mm 20 20
I mm 100 100
J mm 3 3
Weight (Kgs.) 19 39
Clamping Pressure (KGF) 5000 5000
