Precision Self Centering High Grip Machine Vise

Dual-Station Setup: Can be customized with an optional intermediate jaw to hold two workpieces simultaneously, maximizing your spindle uptime. Our precision vise is specifically engineered for high-stakes CNC milling and grinding operations. With a compact footprint and a high-clamping capacity, it provides the stability and accuracy required for modern multi-axis machining.

Key Features & Benefits

  • Industrial Hardness: Features alloy steel jaws case-hardened to HRC 60 ± 2, paired with a flame-hardened FCD 60 body for superior wear resistance and long-term durability.
  • Extreme Accuracy: Achieve perfect alignment with parallelism and squareness held within ± 0.02 mm / 100 mm.
  • Advanced Versatility: Reversible jaws provide dual clamping areas, significantly expanding your workpiece range.
  • Seamless Setup Integrated tenons and tenon slots ensure effortless, rapid truing of the vise to your machine table.

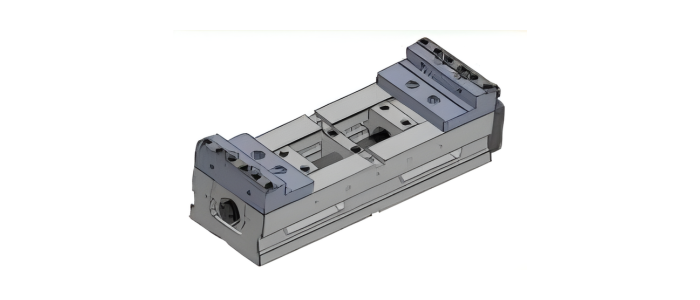

TECHNICAL SPECIFICATION WITHOUT CENTRE JAW ONE PC CAN BE HELD
MODEL PSMV150 PSMV150+

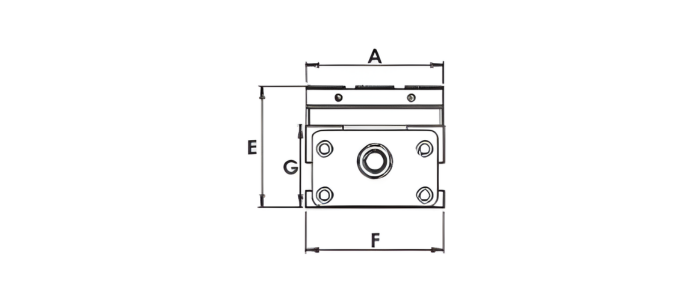

Jaw Width A mm 150 150

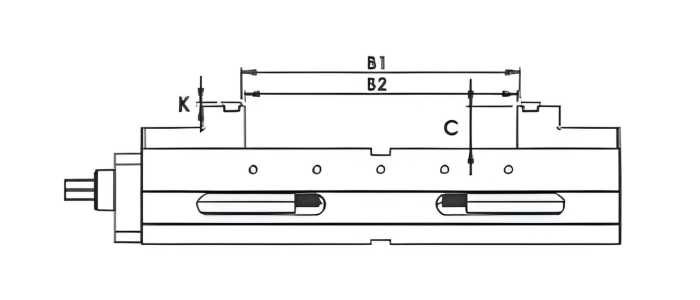

B1 mm 175 260
B2 mm 170 255

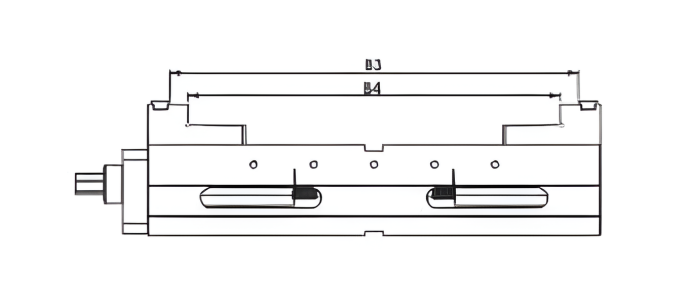

B3 mm 265 400
B4 mm 260 370
C mm 40 40

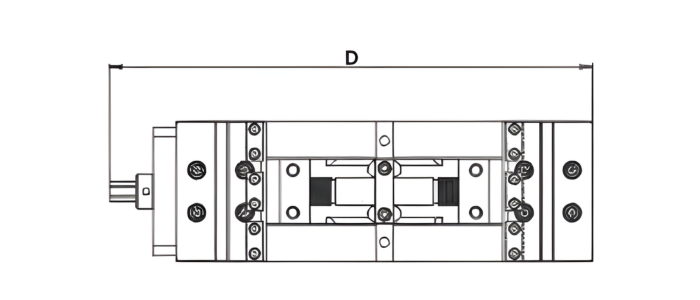

D mm 320 500
E mm 113 130
F mm 151 151
G mm 70 90

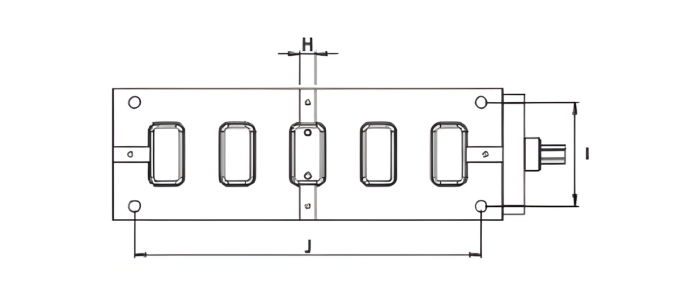

H mm 20 20
I mm 100 120
J mm 250 400
K mm 3 3
Weight (Kgs.) 21.5 41.5
Clamping Pressure (KGF) 4500 4500

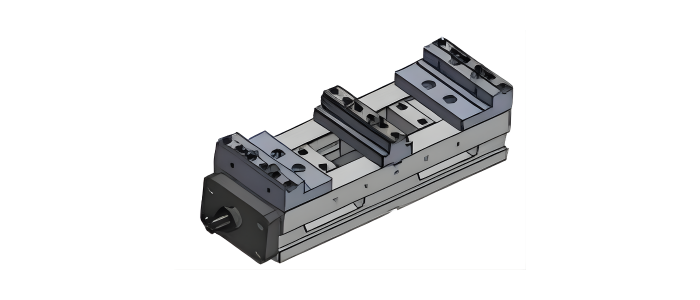

TECHNICAL SPECIFICATION WITH CENTRE JAW TWO PCS CAN BE HELD
MODEL PSMV150 PSMV150+
Jaw Width mm (A) 150 150
B1 mm 72 115
B2 mm 57 95
B3 mm 117 185
B4 mm 112 167
C mm 40 40
D mm 320 500
E mm 113 130
F mm 151 151
G mm 70 90
H mm 20 20
I mm 100 120
J mm 250 400
K mm 3 3
Weight (Kgs.) 23 44
Clamping Pressure (KGF) 4500 4500
