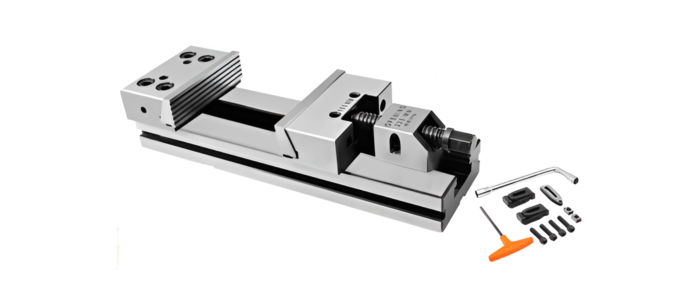

Modular Precision Machine Vise Taper Jaws

Achieve maximum clamping rigidity and repeatability for high-performance machining.
This high-grade modular vise is engineered for demanding workshop environments where accuracy is non-negotiable. Featuring a low-profile design and “pull-down” jaw technology, it ensures your workpiece stays flat against the bed, effectively eliminating “jaw lift” during heavy-duty operations.

Key Features & Benefits

  • Anti-Lift “Pull-Down” Jaws: Specialized jaw geometry pulls the workpiece downward against the bed during clamping, eliminating “jaw lift” and ensuring maximum contact with parallels.
  • Hardened Alloy Steel Construction: All critical parts are case-hardened to HRC 60 ± 2, providing a high-performance surface that resists wear and maintains structural integrity.
  • High-Precision Alignment: Delivers exceptional accuracy with squareness maintained within ± 0.01 / 100 mm for tight-tolerance milling.
  • Modular Series Compatibility: Uniform bed heights allow multiple units to be used in series, providing a stable platform for extra-long workpieces.
  • Hammer-Less Clamping: Designed for rigid, secure clamping without the need for manual hammering to seat parts, improving workflow efficiency.

Technical Specifications

Vise Type Low Profile, Modular (Fixed Base)
Hardness HRC 60 ± 2 (Case Hardened)
Accuracy ± 0.01 / 100 mm (Squareness)
Material High-Grade Alloy Steel (Stabilized)
Clamping Style Anti-Lift / Pull-Down
TECHNICAL SPECIFICATION

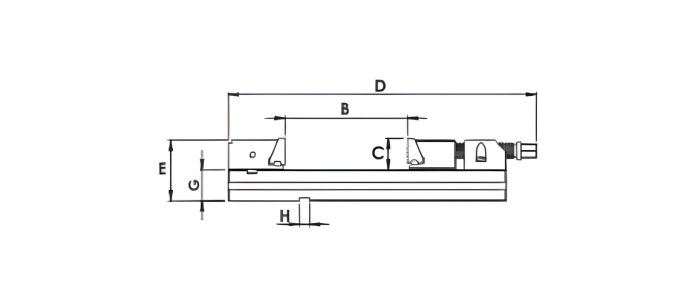

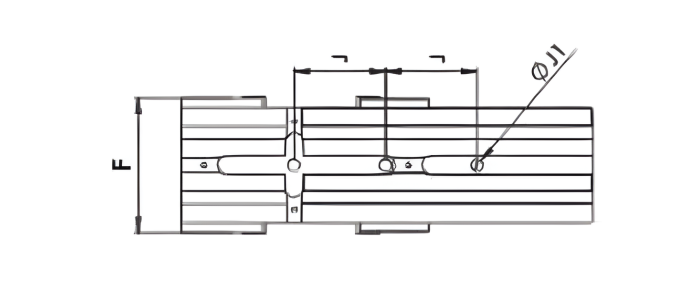

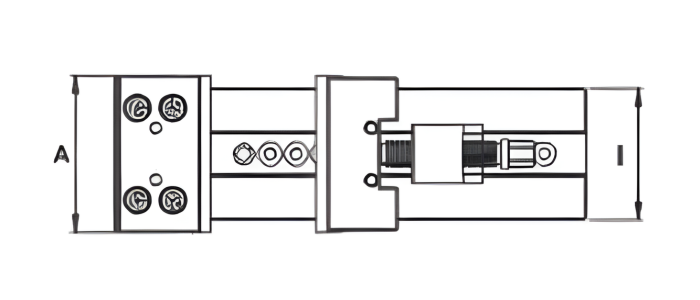

ModelMPMV100MPMV125MPMV150MPMV150+MPMV200MPMV200+
Jaw Width (A) mm100125150150200200
Opening (B) mm130175225300300400
C mm304050506060
D mm325375450525555655
E mm71909898118118
F mm102125150150203203
G mm455050505757
H mm161616161616
I mm90100125125175175
J mm100100100100100100
J1 mm131313131313
Weight (Kgs.)141729315358
Clamping Pressure (KGF)250030003500350040004000
