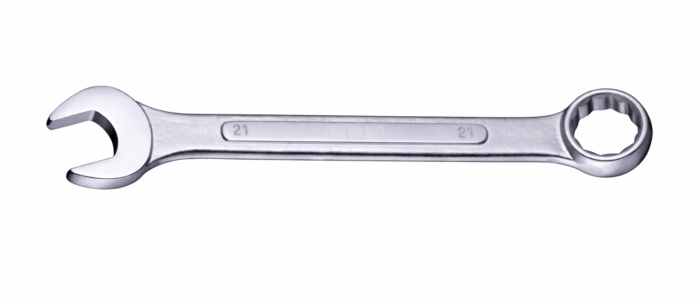

Combination Open & Ring End Spanner Raised Panel – ANSI

These versatile tools feature an open end and a ring end, Raised Panel providing the flexibility needed for various mechanical tasks.

Key Features

  • Description: High- strength Spanners with raised panel design end a 15° offset for improved torque and accessibility.
  • Material & Standard: Made from Carbon or Chrome Vanadium steel, These tools conforming to ANSI Specification.
  • Finish: Matt Finish (Head Polished Also Available).
  • Sizes: Offered in both Metric (6mm to 32mm) and SAE (1/4″ to 1-1/4″) sizes.
SIZES LENGTH mm WEIGHT gm (Approx.)
MM SAE
6 1/4 95 16
7 98 20
8 5/16 107 28
9 118 30
10 3/8 126 40
11 7/16 132 45
12 138 54
13 1/2 146 65
14 9/16 165 80
15 175 90
16 5/8 185 105
17 11/16 205 135
18 217 150
19 3/4 230 165
20 230 165
21 13/16 260 200
22 7/8 290 230
23 300 250
24 15/16 315 300
25 1 325 325
26 360 350
27 1-1/16 362 380
28 1-1/8 372 450
30 377 500
32 1-1/4 392 565
NO OF PCS IN SET SIZE IN MM WEIGHT GM
6 PC SET 8, 10, 12, 13, 14, 17 402
8 PC SET 8, 9, 10, 11, 13, 14, 17, 19 581
12 PC SET 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 886
14 PC SET 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 22 1126
14 PC SET 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 22, 23, 24 1250
25 PC SET 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32 4536
SETS IN SAE
5 PC SET 3/8, 7/16, 1/2, 9/16, 5/8 328
12 PC SET 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1″ 1342
14 PC SET 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 5/16, 1, 1-1/4 2222
