GY 3100 Self Centering Chucks

Single Guide Master Top Jaws

Engineered for consistent quality and a longer operational life, the GY 3100 Self-Centering Lathe Chuck features a robust Single Guide Master Top Jaw design. Built to handle demanding machining tasks, these chucks offer exceptional versatility and precision.

Key Features

Construction & Material Specifications
Our self-centering lathe chucks are engineered for high-precision performance and long-term industrial use.
    • Premium Chuck Bodies: Available in three configurations to match your RPM and durability requirements:
      • High-Tensile Cast Iron: Alloyed with Chromium, Nickel, and Manganese for superior wear resistance (Hardness: 210 BHN).
      • SG Iron (500/7 Grade): Designed for high-speed operations and extended service life (Hardness: 210 BHN).
      • Nickel-Chrome Alloy Steel: Features hardened and ground jaw ways for maximum accuracy and high-RPM stability (Hardness: 45 HRC).
    • Generous Through-Hole: Designed with large bore diameters to accommodate bar stock and long workpieces easily.
    • Precision Scroll: Drop-forged from high-tensile alloy steel, precision machined, and hardened to 35 HRC for consistent centering accuracy.
    • Hardened Jaws: Constructed from low-carbon alloy steel, case-hardened to 62 HRC, and ground on both sides to ensure a smooth fit and perfect pitch.
    • Durable Pinions: Made from specialized alloy steel and case-hardened to 50 HRC for high torque resistance.
    • Included Accessories: Every chuck includes a high-strength operating key and a full set of mounting bolts (3, 4, or 6 pieces).
    • Precision Jaw Systems: Available in both 3-jaw and 4-jaw configurations to provide superior grip and centering accuracy.
    • Extensive Size Range: We offer a comprehensive selection of sizes, from compact 80mm (3.1/4″) units up to heavy-duty 400mm (15.3/4″) chucks.

Accessories Included

Every Chuck comes ready for immediate setup with a comprehensive set of standard accessories:
  • 1 Set of Outside Hard Solid Jaws
  • 1 Set of Inside Hard Solid Jaws
  • 1 Pc. Chuck Operating Key
  • 1 Set of Mounting Bolts
Looking for more flexibility? Optional accessories including Soft Solid Jaws. are also available to customize your setup.

Applications

Self Centring Lathe Chucks are geared scroll chucks for use on lathes, rotary tables, dividing heads, milling machines etc.
GY 3100 Model Numbers
Chuck Size (MM) Chuck Size (Inches) Through Hole (mm) C.I. Body S.G. Body Steel Body
3 Jaw 4 Jaw 3 Jaw 4 Jaw 3 Jaw 4 Jaw
125 5″ 32 1113125 1114125 2113125 2114125 3113125 3114125
160 6 1/4″ 42 1113160 1114160 2113160 2114160 3113160 3114160
200 8″ 55 1113200 1114200 2113200 2114200 3113200 3114200
250 10″ 76 1113250 1114250 2113250 2114250 3113250 3114250
315 12 1/2″ 105 1113315 1114315 2113315 2114315 3113315 3114315
350 13 3/4″ 115 1113350 1114350 2113350 2114350 3113350 3114350
400 15 3/4″ 136 1113400 1114400 2113400 2114400 3113400 3114400

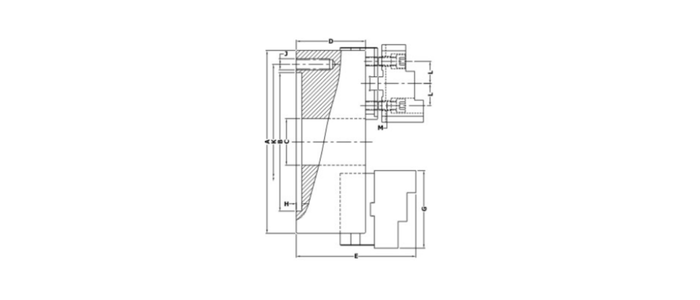

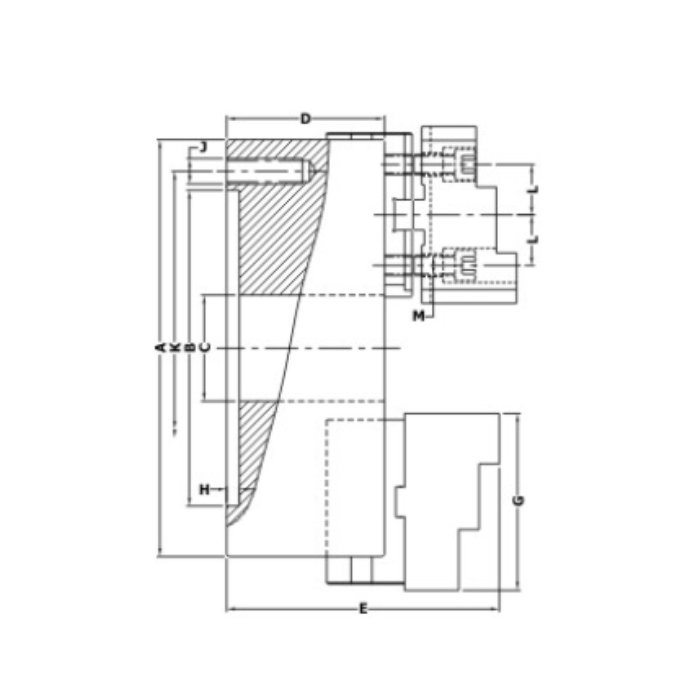

Technical Specification
Size 125mm 160mm 200mm 250mm 315mm 350mm 400mm
A 125 160 200 250 315 350 400
B H7 95 125 160 200 260 290 330
C 32 42 55 76 105 115 136
D 56 65 75 85 94 100 105
E 97 109 121 139 152 168 180
G 60 71 85 100 115 136 136
H 5 5 6 6 7 7 7
J M 8 M 10 M 10 M 12 M 16 M 16 M 16
P.C.D K 108 140 176 224 286 318 362
Tol. on K ±0.25 ±0.30 ±0.30 ±0.35 ±0.40 ±0.40 ±0.40
L 16 19.05 22.25 27 31.75 38.10 38.10
M M8 M10 M10 M12 M12 M16 M16
Size of Sq. Key 9 11 11 14 14 14 17
