GY-CHA ULTIMATE THREADING TAPS BA

Engineered for precision and durability, our British Association are the essential choice for creating clean, internal threads in a wide range of materials. Manufactured from high-grade Special Tool Steel and hardened to 58° to 60° HRC, these taps are designed to withstand high torque while maintaining exceptional edge sharpness.Whether you are performing routine maintenance or precision manufacturing, these taps provide the reliability and accuracy required for professional-grade threading.

Key Features

  • Material: High-grade Special Tool Steel for superior wear resistance.
  • Hardness: 58° to 60° HRC.
  • Thread Profile: Metric Coarse (Standard) and Fine Pitch options available.
  • Thread Angle: 47-1/2° standard metric profile.
  • Set Composition: Supplied in sets of three (Taper, Second, and Bottoming).

The Precision Set: 3-Stage Threading

To ensure a perfect finish and reduce the risk of tool breakage, our hand taps are supplied in a traditional three-piece set:
  1. Taper Tap: Features 8 to 10 chamfered threads. Ideal for easy starting and alignment in rough materials (4° taper per side).
  2. Second (Plug) Tap: Features 3 to 5 chamfered threads. Used for general-purpose threading and following the taper tap (8° taper per side).
  3. Bottoming Tap: Features 1-1/2 chamfered threads. Specifically designed for threading to the very bottom of blind holes (23° taper per side).
TECHNICAL SPECIFICATION

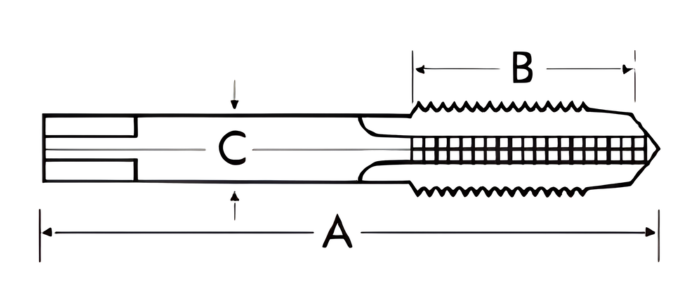

Size No. Major Diameter of Thread in Inches Threads Per Inch No. Of Flutes A
Overall Length Inches		 B
Thread Length Inches		 C
Shank Diameter Inches
0 0.2362 25.4 3 2-1/2 1 0.242
1 0.2087 28.2 3 2-3/8 7/8 0.213
2 0.1850 31.4 3 2-3/8 7/8 0.189
3 0.1614 34.8 3 2-1/8 3/4 0.166
4 0.1417 38.5 3 2 11/16 0.144
5 0.1260 43.0 3 1-15/16 5/8 0.128
6 0.1102 47.9 3 1-7/8 9/16 0.128
7 0.0984 52.9 3 1-13/16 1/2 0.128
8 0.0866 59.1 3 1-3/4 7/16 0.128
9 0.0748 65.1 3 1-11/16 3/8 0.128
10 0.0669 72.6 3 1-5/8 5/16 0.128
