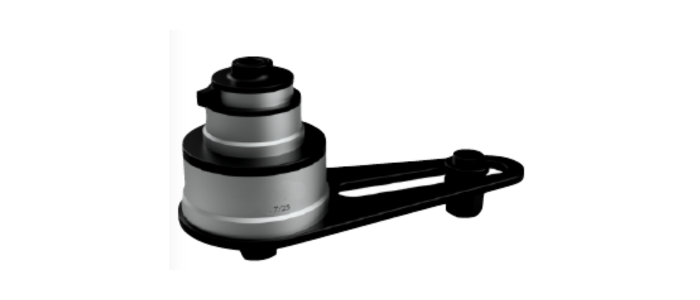

GY-TM TORQUE MULTIPLIERS
Tackle high-torque applications with ease using our professional-grade Torque Multipliers. Designed for heavy-duty industrial maintenance, construction, and automotive use, these tools allow a single operator to apply immense force with precision and minimal physical effort.
By utilizing a robust internal planetary gear system, these multipliers convert low input torque into massive output power, making them indispensable for tightening or loosening stubborn, oversized fasteners.
Key Features
- High Multiplication Ratios:Choose from ratios of 5:1, 25:1, and 125:1 to match your specific torque requirements.
- Massive Torque Capacity: Models available ranging from a compact 1,700 Nm up to a staggering 48,450 Nm for the most demanding industrial jobs.
- Versatile Drive Sizes: Standard square drive inputs and outputs (ranging from 1/2″ to 2.1/2″) ensure compatibility with your existing heavy-duty sockets and wrenches.
- Durable Construction: Built with high-strength alloys to withstand extreme pressure in harsh working environments.
- Reaction Bar Design: Integrated reaction arm provides a secure anchor point, ensuring safety and stability during operation.
| technical specifications | Model | Input Square Drive | Output Square Drive | Multiplication Factor | Max Capacity (Nm) | Recommended Torque wrench |
|---|---|---|---|---|---|
| GY-TM 1 | ½” | ¾” | 5 | 1700 | TM 250R |
| GY-TM 2 | ½” | 1″ | 5 | 1700 | TM 250R |
| GY-TM 5 | ¾” | 1″ | 5 | 2750 | TM 400R |
| GY-TM 5/25 | ½” | 1″ | 25 | 2750 | TM 100R |
| GY-TM 6 | ¾” | 1.1/2″ | 5 | 3450 | TM 500R |
| GY-TM 6/25 | ½” | 1.1/2″ | 25 | 3450 | TM 100R |
| GY-TM 7 | ¾” | 1.1/2″ | 5 | 6220 | TM 1000R |
| GY-TM 7/25 | ½” | 1.1/2″ | 25 | 6220 | TM 250R |
| GY-TM 9/25 | ¾” | 1.1/2″ | 25 | 9680 | TM 400R |
| GY-TM 11/25 | ¾” | 2.1/2″ | 25 | 17340 | TM 500R |
| GY-TM 13/25 | ¾” | 2.1/2″ | 125 | 48450 | TM 400R |
