Heavy Duty Precision Machine Vise

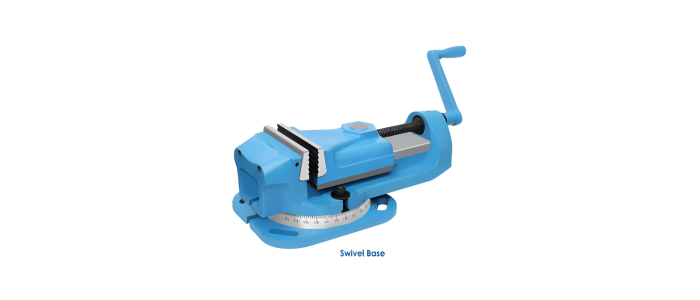

with optional Swivel Base

This milling vise is built for machinists who prioritize both brute strength and surgical precision. Crafted from high-grade FCD 60 ductile iron and featuring flame-hardened guideways, it’s designed to withstand the rigors of heavy-duty machining without compromising on long-term wear resistance.

Key Features

  • Anti-Lift Technology: The jaw plates are engineered with a specialized pull-down angle. This ensures your workpiece is clamped securely downward, preventing “jaw lift” and maintaining absolute flatness during operation.
  • Superior Clamping Force: The spindle is positioned closer to the workpiece than in standard designs. This geometry provides a tougher, more rigid grip, reducing vibration and enhancing safety.
  • Industrial Durability: Featuring a robust FCD 60 body and jaw plates made of hardened and ground tool steel, this vise is built for the high-torque environments of a professional machine shop.
  • High-Precision Specs: Rigorously tested to ensure accuracy in squareness is maintained within ± 0.02 mm / 100mm.

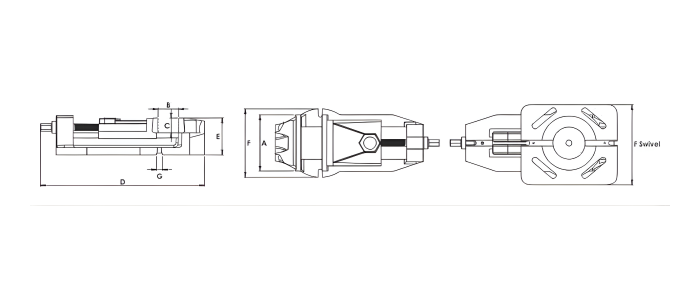

Jaw Width (MM) Opening (MM) MM MM E (Fixed) MM F (Fixed) MM G MM Fixed Weight (Kgs.) Clamping Pressure (KGF)
A B C D
165 150 56 550 135 230 20 43 2500

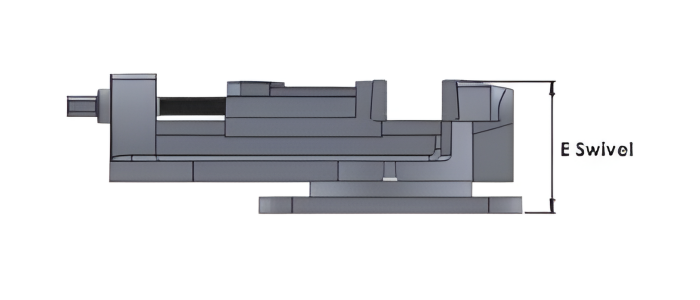

Jaw Width (MM) Opening (MM) MM MM E (Swivel) MM F (Swivel) MM G MM Swivel Weight (Kgs.) Clamping Pressure (KGF)
A B C D
165 150 56 550 175 270 20 54 2500
