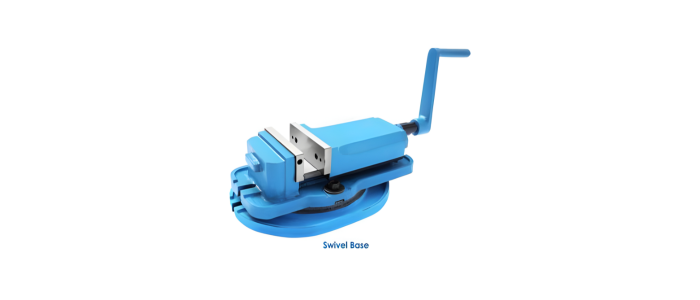

Super Milling Vice Bridge Port Type

with optional Swivel Base

This milling vise is designed for high-precision work on conventional milling machines, combining heavy-duty durability with thoughtful ergonomic features. From its high-strength cast iron construction to integrated coolant management, it is built to handle heavy workpieces with ease.

Key Features

Heavy-Duty Construction

  • Premium Cast Iron Body: Manufactured from high-strength fine-grain (close-grain) cast iron, providing maximum toughness and rigidity to eliminate chatter during operation.
  • Hardened Steel Jaws: The jaws are crafted from specialized steel, then hardened and ground for long-term wear resistance.
  • FCD 60 Crank Handle: Features a high-tensile FCD 60 material handle with a spring-loaded ball mechanism for a secure, positive grip.

Precision & Versatility

  • Integrated ‘V’ Grooves: The fixed jaw includes both vertical and horizontal ‘V’ grooves, allowing you to hold round stock securely and perfectly centered.
  • Increased Jaw Depth: Engineered with a deeper jaw profile to accommodate larger, heavier workpieces.
  • Fine Acme Thread: Equipped with a fine Acme thread screw for precise clamping pressure and smooth adjustment.

Efficiency & Maintenance

  • Advanced Coolant Management: Both the vise body and swivel base feature built-in water channels, ensuring controlled coolant flow and keeping your workspace clean.
  • Smooth Operation: Fitted with a thrust bearing that reduces friction, resulting in smoother movement and significantly less operator fatigue.
  • Quick Alignment: Longitudinal slots in both the swivel base and the vise body allow for rapid, accurate alignment to your machine table.

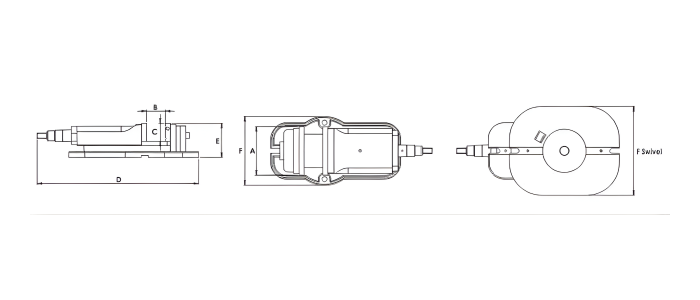

Jaw Width (MM) Opening (MM) MM MM E (Fixed) MM F (Fixed) MM G MM Fixed Weight (Kgs.)
A B C D
100 100 45 344 90 90 16 13
125 125 50 400 100 100 20 20
150 150 55 470 110 110 20 29
200 200 65 610 120 120 20 52

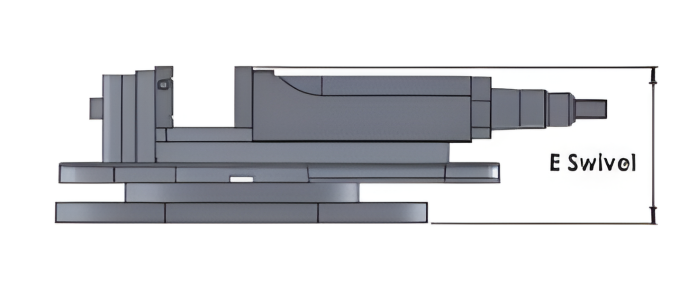

Jaw Width (MM) Opening (MM) MM MM E (Swivel) MM F (Swivel) MM G MM Swivel Weight (Kgs.)
A B C D
100 100 45 344 120 208 16 17
125 125 50 400 130 250 20 30
150 150 55 470 140 270 20 38
200 200 65 610 160 310 20 66
