Shaper Vice

with optional Swivel Base

This shaper vise features a sturdy construction from close-grain casting, making it ideal for use on shaper machines, planners, and other heavy-duty equipment. Its design allows for a wider application, specifically accommodating taller and heavier workpieces that standard vises might struggle to secure.

Key Features

  • Enhanced Capacity: Specifically designed to permit maximum jaw opening to hold heavy and tall jobs securely.
  • Precision Components: Features a high-tensile steel square thread screw for smooth operation and powerful clamping force.
  • Superior Grip: The jaws are crafted from special steels, precisely ground, and serrated to ensure a firm, slip-resistant grip on heavy materials.
  • Versatile 360° Swivel Base: The base is indexed to 360° for flexible positioning. For tasks requiring a stationary setup, the swivel base can be entirely removed.
  • Durable Crank Handle:: The handle is made of unbreakable steel and includes a spring-loaded mechanism to provide a positive, reliable grip during adjustment.

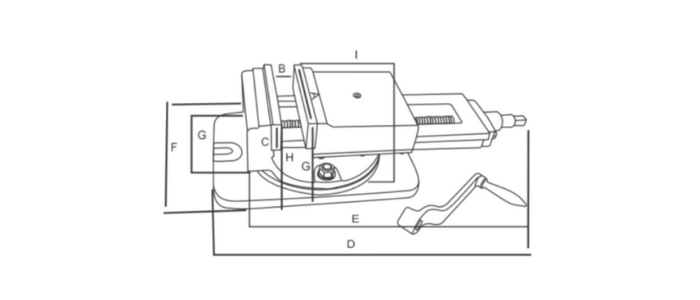

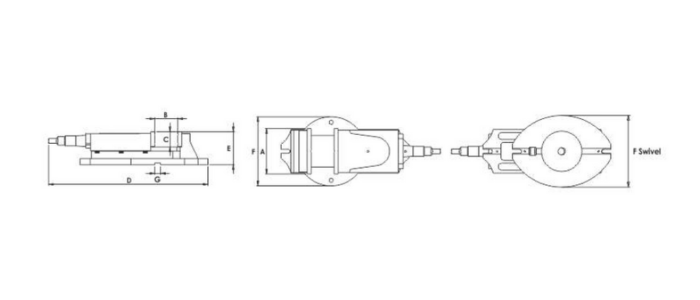

Jaw Width (A)Opening (B)CD (Fixed)E (Fixed)F (Fixed)Weight (Kgs.) Fixed
1502005047520012025
2002506063528013047
2503007571032016079
30036075800360165102
40040075850460190145

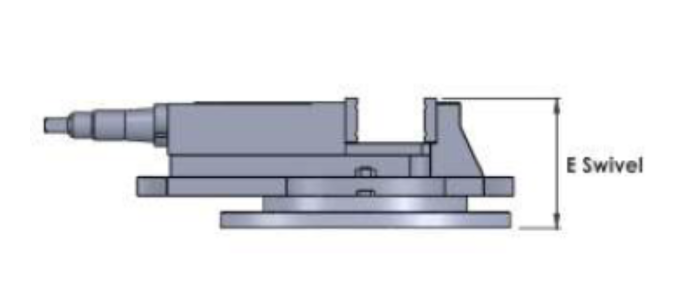

Jaw Width (A)Opening (B)CD (Swivel)E (Swivel)F (Swivel)Weight (Kgs.) Swivel
1502005053022015532
2002506070029017064
25030075770320200105
30036075860380200145
40040075910480225200
