3 Way Universal Tilt & Swivel Angle Vice

Achieve unparalleled versatility in your machining operations with our Precision 3-Way Tilting Vise. Engineered for complex multi-angle setups, this vise eliminates the need for multiple specialized fixtures, allowing for precise positioning across three distinct axes.

Key Features

  • 3-Axis Adjustability:

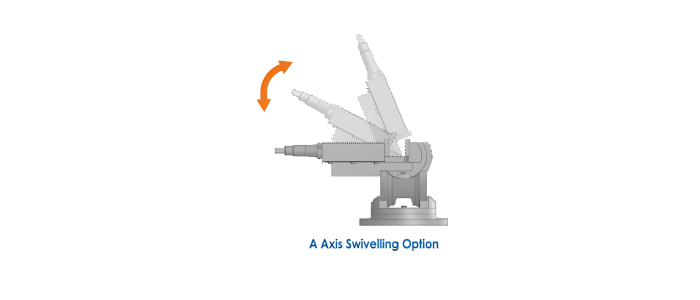

    • A-Axis (Top): Tilts from 0° to 90° for vertical and horizontal flexibility.

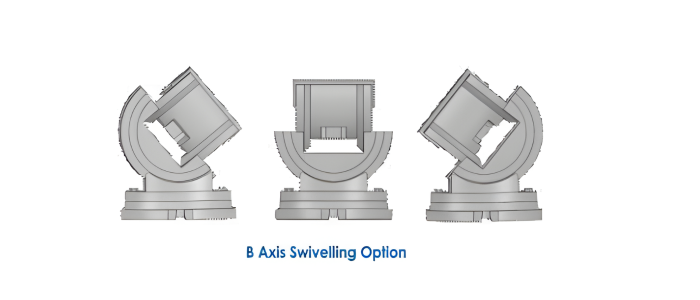

    • B-Axis (Middle): Inclines ±45° for compound angle machining, perpendicular to the swivel movement.
    • Swivel Base: Provides a full 360° rotation with high-visibility graduations.
  • Industrial-Grade Construction: The body is cast from high-strength graded iron, providing the rigidity and vibration dampening required for high-tolerance work.
  • Precision Workholding: Features hardened and precision-ground jaws with integrated “V” grooves, perfect for securing both flat and round workpieces.
  • User-Centric Design:
    • Equipped with an unbreakable steel crank handle featuring a spring-loaded ball mechanism for a secure, positive grip.
    • Integrated longitudinal slots in the swivel base ensure rapid, accurate alignment to your machine table.
  • Positive Locking: Securely lock any angle once set, ensuring zero drift during heavy operations.

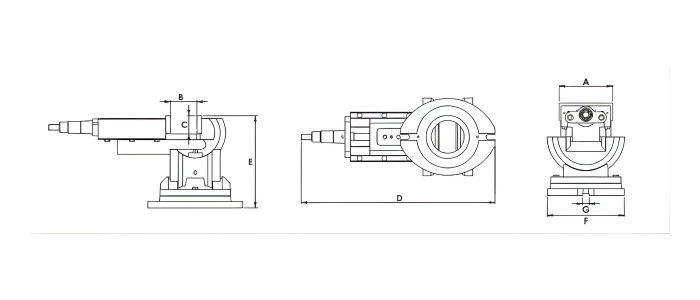

Jaw Width Opening All dimensions in mm Weight (Kgs.)
A B C D E F G
50 50 24 210 110 105 12 4
75 75 34 275 167 140 12 11
100 100 42 420 220 235 20 34
150 150 55 570 290 280 20 62
