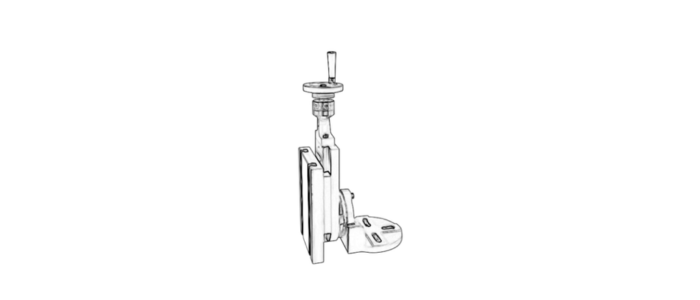

Vertical Sliding Table 319

Enhance your machining capabilities with our Precision Vertical Sliding Table, engineered for versatile milling, drilling, and grinding operations. This robust attachment provides the stability and accuracy required for complex workpieces, featuring a dual-axis design and a full-range swivel base.

Key Features

  • 360° Swivel Versatility: The surface table features a fully adjustable swivel base with clear graduations. A marked 0° reference point ensures precise angular alignment and repeatable setups.
  • Dual-Axis Positioning: Equipped with integrated two-axis movement, allowing for meticulous control over workpiece orientation and travel.
  • Heavy-Duty Construction: Features high-quality T-slots machined from solid material, providing a secure and reliable clamping surface for various fixtures.
  • Smooth & Adjustable Motion: Dovetailed slides ensure fluid travel, while adjustable steel gibs allow you to compensate for wear over time, maintaining “like-new” precision for years.
  • Calibrated Control: Includes a calibrated handwheel for fine incremental adjustments, making it ideal for detailed toolroom applications.
  • Easy Installation: The base is designed with integrated bolt slots, ensuring quick and secure mounting to your machine’s primary table.
Technical Specification
SIZE IN INCHES 12×8
Table Size in mm 300×200
Height in mm 125
Length Overall in mm 510
T. Slot Size in mm 14
Travel Bothways in mm 200
Weight Approx. in kgs 34
