Precision Tilting & Swivelling Vice J & S Type(England)

Take your machining precision to the next level with our Professional Swivel Machine Vise. Designed for complex setups, this vise offers multi-axis movement without sacrificing the rock-solid stability required for heavy-duty milling, grinding, and drilling.

Key Features

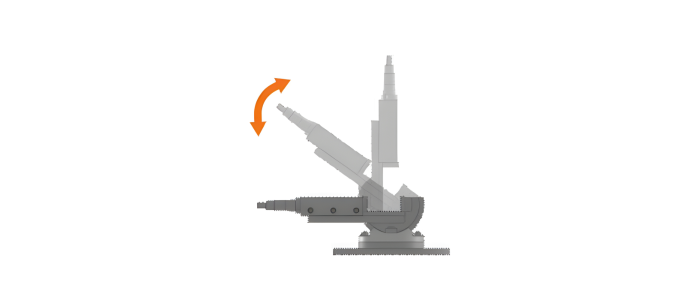

  • Dual-Axis Maneuverability: Features a full 360 degree horizontal swivel base and a 90 degree vertical tilt in the A rotational axis, allowing for precise compound angle setups.
  • Industrial-Grade Construction: The body is cast from high-strength graded cast iron, providing the toughness and vibration-dampening rigidity needed for high-tolerance work.
  • Precision-Ground Steel Jaws: Hardened and ground for accuracy, the jaws feature one vertical and two horizontal “V” grooves, specifically designed to grip round workpieces rigidly.
  • Smooth Operability: Equipped with a thrust bearing for effortless movement and reduced operator fatigue, paired with a high-quality ACME steel screw.
  • Positive Locking: Engineered with a positive locking system to withstand heavy loads during intense operations.
  • Unbreakable Handle: The crank handle is made of unbreakable steel and consists of a spring-loaded ball mechanism to provide a positive grip.
  • Quick Alignment: Features longitudinal slots provided in the swivel base for fast alignment to the machine table.
Component Material / Feature
Vise Body High-strength graded cast iron
Jaws Hardened & precision-ground special steel
Screw Type High-quality ACME Steel
Horizontal Rotation 360 Degree Swivel
Vertical Rotation 90 Degree (A-axis)
Handle Unbreakable steel with spring-loaded ball

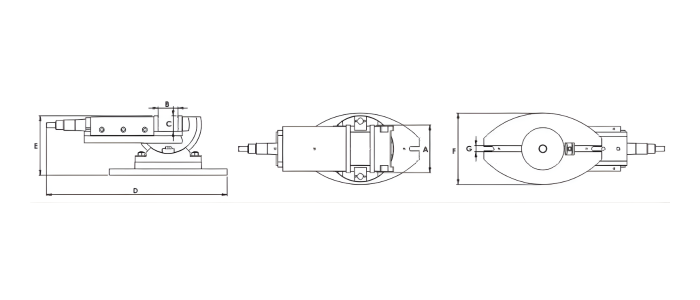

Jaw Width
A		 Opening
B		 C D E F G Weight (Kgs.)
50 50 25 210 95 105 16 4
80 75 38 285 125 140 16 8.5
100 100 42 370 160 170 16 18
125 125 50 450 170 228 20 30
150 150 50 540 195 236 20 44
200 200 60 640 220 280 20 73
