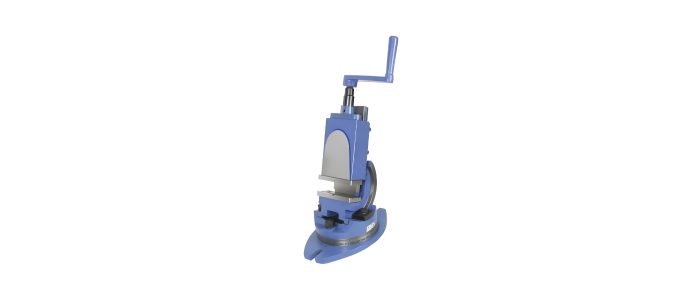

Tilting & Swivelling Vise

This vise is engineered for high-precision machining and heavy-duty durability. Featuring a multi-axis swivel design and a high-strength cast iron build, it provides the versatility and stability required for complex “round job” setups and intensive industrial operations.

Key Features

Precision Movement

  • 360° Horizontal Swivel: Achieve complete rotation for optimal positioning on your workbench or machine table.

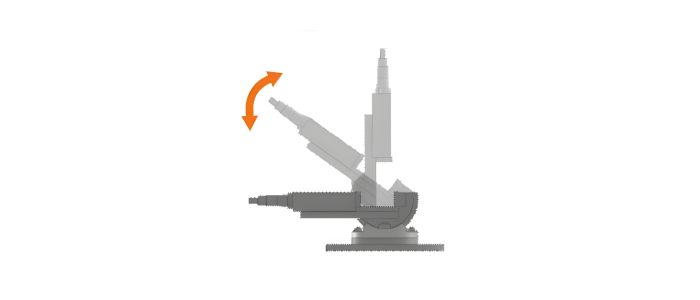

  • 90° Vertical Tilt: Features a vertical swivel movement in the A rotational axis, allowing for angled drilling, milling, and grinding.
  • Thrust Bearing Integration: Fitted with a high-quality thrust bearing to ensure smooth operation and reduced user fatigue.

Heavy-Duty Construction

  • High-Strength Body: Cast from high-strength graded iron for maximum toughness and rigidity.
  • Hardened Steel Jaws: Precision-ground jaws made of specialized, hardened steel for a reliable, non-slip grip.
  • Premium ACME Screw: Equipped with a high-quality ACME steel screw for consistent clamping pressure and wear resistance.
  • Unbreakable Crank Handle: Made of steel with a spring-loaded ball mechanism to provide a positive grip during operations.

Specialized Functionality

  • “V” Grooved Jaws: Provided with one vertical and two horizontal grooves to hold round jobs rigidly.
  • Positive Locking: Engineered to withstand heavy loads and maintain alignment under pressure.
  • Quick Alignment: Includes a longitudinal slot in the swivel base for fast mounting to machine tables.
Feature Specification
Horizontal Rotation 360° Full Swivel
Vertical Rotation 90° (A-axis)
Body Material High Strength Graded Cast Iron (FCD 60 Optional)
Jaw Type Hardened & Precision Ground Steel
V-Groove Configuration 1 Vertical / 2 Horizontal (for round workpieces)
Screw Type High Quality ACME Steel Screw
Bearing Type Thrust Bearing for smooth movement
Handle Design Unbreakable Steel with Spring-Loaded Ball Mechanism
Mounting Style Longitudinal Slot in Swivel Base

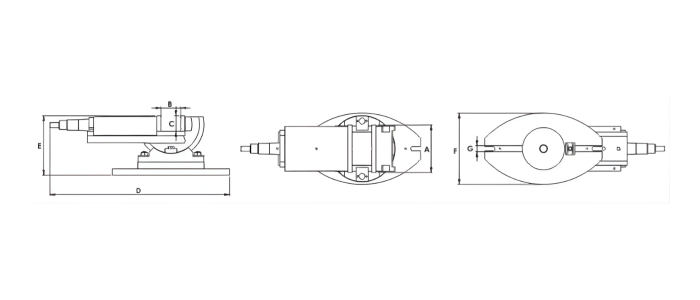

Jaw Width (A) Opening (B) C D E F G Weight (Kgs.)
50 50 25 210 95 105 16 4
80 75 38 285 125 140 16 8.5
100 100 42 370 160 170 16 18
125 125 50 450 170 228 20 30
150 150 50 540 195 236 20 44
200 200 60 640 220 280 20 73
