Stainless Steel 2pc Flanged End Ball Valve (Class 150)

Key Features

  • Full Port Design: Maximizes flow capacity and minimizes pressure drop, ensuring efficient system performance.
  • Precision Investment Cast: High-quality casting process for superior surface finish and dimensional accuracy.
  • Safety First: Features a Blow-Out Proof Stem for enhanced operator safety under high-pressure conditions.
  • Standard Compliance: Built to BSEN ISO 17292 (BS 5351) design standards, guaranteeing global compatibility and quality.
  • High Pressure Rating: Rated for 1000 WOG (Water, Oil, Gas) / PN40, making it suitable for a wide range of industrial applications.

Primary Applications

  • Food & Pharmaceutical Industries
  • Compressed Air & Gas Installations
  • Oil Refineries
  • Chemical & Solvent Industries
  • Petrochemical & Process Industries

Technical Specifications

    • Size Range: ½” to 4” (DN 15 – DN 100).
    • Body Style: 2-piece body construction.
    • End Connection: Flanged End conforming to Class 150.
    • Working pressure: 1000 WOG / PN40.
    • Optional Extras: Handle with Locking Device (Available on request).

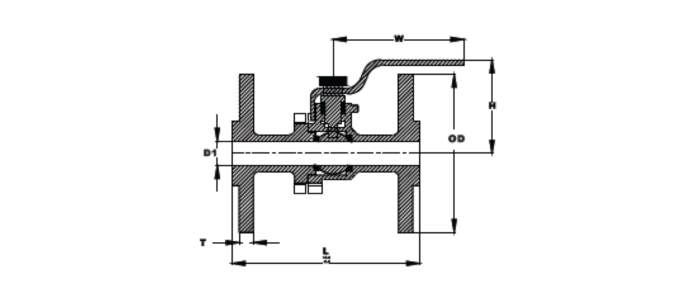

Technical Specification
SIZE L H D1 OD W T
MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH
15MM/1/2″ 108 4.25 65 2.56 14.00 0.55 90 3.54 125 4.92 8.00 0.31
20MM/3/4″ 117 4.61 65 2.56 18.50 0.73 100 3.94 125 4.92 8.90 0.35
25MM/1″ 127 5.00 65 2.56 24.00 0.94 108 4.25 160 6.30 9.60 0.38
32MM/1-1/4″ 140 5.51 100 3.94 31.00 1.22 117 4.61 190 7.48 11.20 0.44
40MM/1-1/2″ 165 6.50 100 3.94 37.00 1.46 127 5.00 190 7.48 12.70 0.50
50MM/2″ 178 7.01 105 4.13 50.00 1.97 152 5.98 190 7.48 14.30 0.56
65MM/2-1/2″ 190 7.48 155 6.10 62.00 2.44 178 7.01 250 9.84 15.90 0.63
80MM/3″ 203 7.99 155 6.10 74.00 2.91 190 7.48 250 9.84 17.50 0.69
100MM/4″ 229 9.02 180 7.09 98.00 3.86 229 9.02 300 11.81 22.30 0.88
Technical Specification

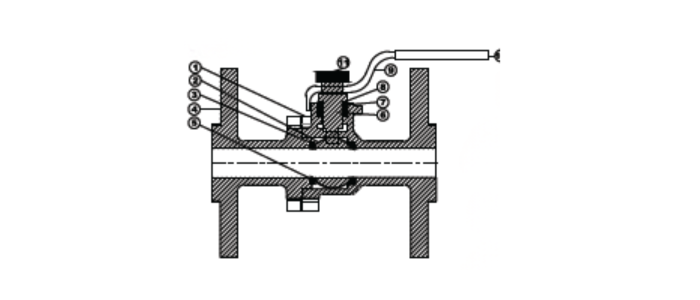

S.No Parts Name Material Specification Qty
1 Body Stainless Steel / Carbon Steel ASTM A351 GR.CF8 / CF8M / ASTM A216 GR. WCB 1
2 Ball Stainless Steel ASTM A351 GR.CF8 / CF8M / ASTM A276 GR. 304 / 316 1
3 Ball Seat PTFE BS 6564 2
4 Flange Stainless Steel / Carbon Steel ASTM A351 GR.CF8 / CF8M / ASTM A216 GR. WCB 2
5 Flange Seal PTFE BS 6564 2
6 Stem / Spindle Stainless Steel ASTM A276 GR. 304 / 316 1
7 Thrust Washer / Packing PTFE BS 6564 2
8 Gland Nut Stainless Steel AISI 303 / 304 / 316 1
9 Handle Stainless Steel / Carbon Steel AISI 202 / 304 / 316 1
10 Sleeve PVC BS 6576 1
11 Handle Lock Nut Stainless Steel AISI 304 / 316 1
NOTE: Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
