Stainless Steel 2pc Flanged End Ball Valve With Actuator Mounting Pad

Key Features

  • Safety: Blow Out Proof Stem
  • Security: Handle with Locking Device available on request

Primary Applications

  • Food & Pharmaceutical Industries
  • Compressed Air & Gas Installations
  • Oil Refineries
  • Chemical & Solvent Industries
  • Petrochemical & Process Industries

Technical Specifications

    • Size Range: ½” To 4” (DN 15 TO DN 100)
    • Body Style: 2-Piece Body, Full Port.
    • Pressure Class: Class 150 / 1000 WOG / PN40 .
    • End Connections: Flanged .
    • Standards: BSEN ISO 17292 / BS 5351.
    • Design Standard: BSEN ISO 17292 (BS 5351)
    • Construction: Precision Investment Casted

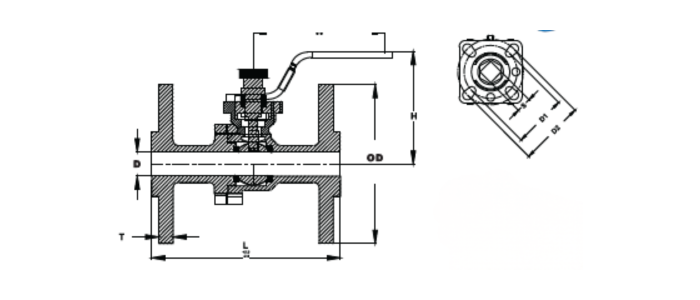

Technical Specification
SIZE 15MM/ 1/2″ 20MM/ 3/4″ 25MM/ 1″ 32MM/ 1-1/4″ 40MM/ 1-1/2″
L (MM) 108 117 127 140 165
(INCH) 4.25 4.61 5 5.51 6.5
H (MM) 76 76 76 115 115
(INCH) 2.99 2.99 2.99 4.53 4.53
D (MM) 14 18.5 24 31 37
(INCH) 0.55 0.73 0.94 1.22 1.46
OD (MM) 90 100 108 117 127
(INCH) 3.54 3.94 4.25 4.61 5
W (MM) 125 125 160 190 190
(INCH) 4.92 4.92 6.3 7.48 7.48
T (MM) 8 8.9 9.6 11.2 12.7
(INCH) 0.31 0.35 0.38 0.44 0.5
S (MM) 9 9 11 11 14
(INCH) 0.35 0.35 0.43 0.43 0.55
D1 (MM) 36 36 42 42 50
(INCH) 1.42 1.42 1.65 1.65 1.97
D2 (MM) 42 42 50 50 70
(INCH) 1.65 1.65 1.97 1.97 2.76
ISO 5211 (MM)/(INCH) F03/F04 F03/F04 F04/F05 F04/F05 F05/F07
Technical Specification
SIZE 50MM/2″ 65MM/2-1/2″ 80MM/3″ 100MM/4″
L (MM) 178 190 203 229
(INCH) 7.01 7.48 7.99 9.02
H (MM) 115 170 170 210
(INCH) 4.53 6.69 6.69 8.27
D (MM) 50 62 74 98
(INCH) 1.97 2.44 2.91 3.86
OD (MM) 152 178 190 229
(INCH) 5.98 7.01 7.48 9.02
W (MM) 190 250 250 300
(INCH) 7.48 9.84 9.84 11.81
T (MM) 14.3 15.9 17.5 22.3
(INCH) 0.56 0.63 0.69 0.88
S (MM) 14 17 17 22
(INCH) 0.55 0.67 0.67 0.87
D1 (MM) 50 70 70 100
(INCH) 1.97 2.76 2.76 3.94
D2 (MM) 70 102 102 125
(INCH) 2.76 4.02 4.02 4.92
ISO 5211 (MM)/(INCH) F05/F07 F07/F10 F07/F10 F10/F12

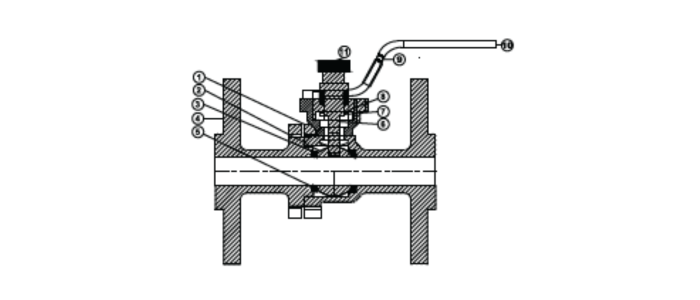

Technical Specification
S.No PARTS NAME MATERIAL SPECIFICATION QTY
1 BODY STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8 /CF8M/ASTM A216 GR. WCB 1
2 BALL STAINLESS STEEL ASTM A351 GR.CF8 /CF8M/ASTM A276 GR. 304/316 1
3 BALL SEAT PTFE BS 6564 2
4 FLANGE STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8 /CF8M/ASTM A216 GR. WCB 2
5 FLANGE SEAL PTFE BS 6564 2
6 STEM/SPINDLE STAINLESS STEEL ASTM A276 GR. 304/316 1
7 THRUST WASHER/PACKING PTFE BS 6564 2
8 GLAND NUT STAINLESS STEEL AISI 303/304/316 1
9 HANDLE STAINLESS STEEL/ CARBON STEEL AISI 202/304/316 1
10 SLEEVE PVC BS 6576 1
11 HANDLE LOCK NUT STAINLESS STEEL AISI 304/316 1
NOTE: Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
