Stainless Steel 2pc Screwed Hose End Ball Valve

Key Technical Features

  • Rugged Construction: Built with a 2-piece body and manufactured using Precision Investment Casting for superior structural integrity and a high-quality finish.
  • Enhanced Safety: Equipped with a Blow-Out Proof Stem, ensuring reliable operation and operator safety even under high-pressure conditions.
  • High Pressure Rating: Rated for a working pressure of PN 40, providing a robust safety margin for industrial workflows.
  • Versatile Threading: Designed for global compatibility, the screwed threads conform to a wide range of international standards including BS 21 (BSP/BSPT), NPT, DIN 259/2999, ISO 228, and ISO 7/1.
  • Customizable Security: A handle with a locking device is available on request to prevent unauthorized operation.

Primary Applications

  • Food & Pharmaceutical Industries
  • Compressed Air & Gas Installations
  • Oil Refineries
  • Chemical & Solvent Industries
  • Petrochemical & Process Industries

Technical Specifications

    • Size Range: 1/2″ to 2″ (DN 15 to DN 50) .
    • Working Pressure: PN 40 .
    • Body Style: 2-Piece, Full Port .
    • Casting Method: Precision Investment Cast .
    • Stem Type: Blow-Out Proof .

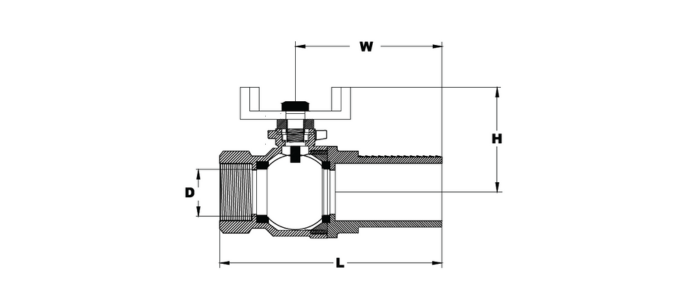

Technical Specification
SIZE L H
mm inch mm inch
15MM/1/2″ 85 3.35 60 2.36
20MM/3/4″ 92 3.62 68 2.67
25MM/1″ 113 4.45 68 2.67
32MM/1-1/4″ 126 4.96 82 3.22
40MM/1-1/2″ 142 5.59 86 3.38
50MM/2″ 172 6.77 94 3.70

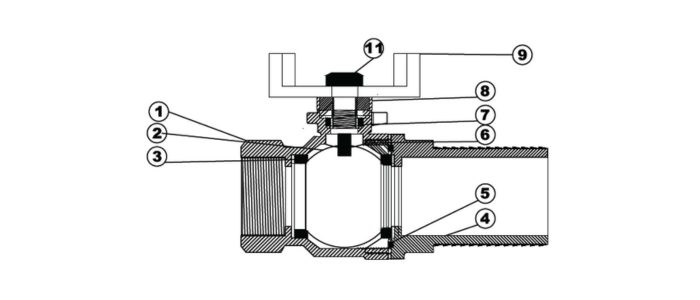

Technical Specification
S.NO PART’S NAME MATERIAL SPECIFICATION QTY
1 BODY STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB 1
2 BALL STAINLESS STEEL ASTM A351 GR.CF8/CF8M/ ASTM A276 GR. 304/316 1
3 BALL SEAT PTFE BS 6564 2
4 HOSE END CONNECTOR/NUT STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB 1
5 CAP/NUT/SEAL PTFE BS 6564 1
6 STEM/SPINDLE STAINLESS STEEL ASTM A276 GR. 304/316 1
7 THRUST WASHER/PACKING PTFE BS 6564 2
8 GLAND NUT STAINLESS STEEL AISI 202/304/316 1
9 HANDLE STAINLESS STEEL/ CARBON STEEL AISI 202/304/316 1
10 SLEEVE PVC BS 6576 1
11 HANDLE LOCK NUT STAINLESS STEEL AISI 304/316 1
NOTE: Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
