Stainless Steel 2pc Screwed End Ball Valve

Core Features

  • Construction: 2 Pc Body for high durability.
  • Safety: Blow Out Proof Stem design.
  • Casting: Precision Investment Casted for superior finish.
  • Security: Handle with Locking Device (available on request).
  • Pressure: Rated for PN 40.

Primary Applications

  • Food & Pharmaceutical Industries
  • Compressed Air & Gas Installations
  • Oil Refineries
  • Chemical & Solvent Industries
  • Petrochemical & Process Industries

Technical Specifications

    • Body Type: 2-Piece Body Construction .
    • Port Type: Full Port .
    • Pressure Rating: PN 40 .
    • Manufacturing: Precision Investment Casted .
    • Size Range: 1/4″ – 4″ (DN 8 – DN 100) .

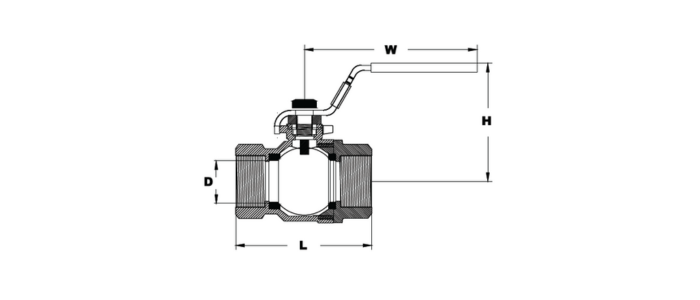

Technical Specification
SIZE L H D W
mm inch mm inch mm inch mm inch
8MM/1/4″ 50 1.97 60 2.36 10.00 0.39 95 3.74
10MM/3/8″ 50 1.97 60 2.36 12.00 0.47 95 3.74
15MM/1/2″ 60 2.36 63 2.48 15.00 0.59 100 3.94
20MM/3/4″ 66 2.60 68 2.68 18.50 0.73 110 4.33
25MM/1″ 82 3.23 72 2.83 24.00 0.94 125 4.92
32MM/1-1/4″ 82 3.23 78 3.07 31.00 1.22 125 4.92
40MM/1-1/2″ 98 3.86 96 3.78 38.00 1.50 165 6.50
50MM/2″ 113 4.45 96 3.78 50.00 1.97 165 6.50
65MM/2-1/2″ 130 5.12 145 5.71 63.00 2.48 245 9.65
80MM/3″ 155 6.10 145 5.71 76.00 2.99 245 9.65
100MM/4″ 187 7.36 172 6.77 100.00 3.94 300 11.81
Technical Specification

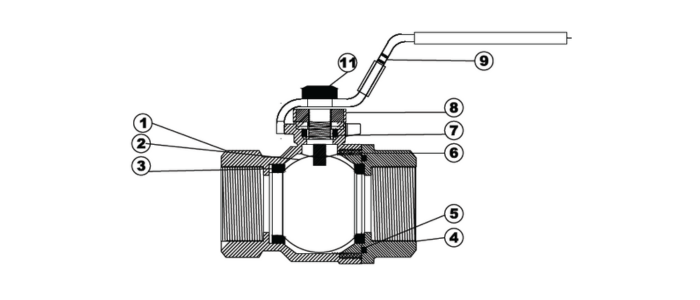

S.NO PART’S NAME MATERIAL SPECIFICATION QTY
1 BODY STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB 1
2 BALL STAINLESS STEEL ASTM A351 GR.CF8/CF8M/ ASTM A276 GR. 304/316 1
3 BALL SEAT PTFE BS 6564 2
4 CAP/NUT STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB 1
5 CAP/NUT/SEAL PTFE BS 6564 1
6 STEM/SPINDLE STAINLESS STEEL ASTM A276 GR. 304/316 1
7 THRUST WASHER/PACKING PTFE BS 6564 2
8 GLAND NUT STAINLESS STEEL AISI 202/304/316 1
9 HANDLE STAINLESS STEEL/ CARBON STEEL AISI 202/304/316 1
10 SLEEVE PVC BS 6576 1
11 HANDLE LOCK NUT STAINLESS STEEL AISI 304/316 1
NOTE: Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
