Stainless Steel 2pc Screwed Male End Ball Valve

Key Features

  • 2 Pc Body Construction: Offers a balance of durability and ease of maintenance.
  • Full Port: Ensures an unrestricted flow path to minimize pressure loss.
  • Blow-Out Proof Stem: A critical safety feature for high-pressure environments.
  • Investment Casted: Precision manufacturing for superior structural integrity.
  • Locking Device: Handle with locking device available on request for added security.

Primary Applications

  • Food & Pharmaceutical Industries
  • Compressed Air & Gas Installations
  • Oil Refineries
  • Chemical & Solvent Industries
  • Petrochemical & Process Industries

Technical Specifications

    • Construction: 2-Piece Bolted Body .
    • Size Range: 1/2″ to 2″ (DN 15 to DN 50).
    • Pressure Rating: PN 40 .
    • End Connections: Screwed / Threaded .
    • Thread Standards: BS 21 (BSP/BSPT), NPT, DIN 259/2999, ISO 228, & ISO 7/1 .

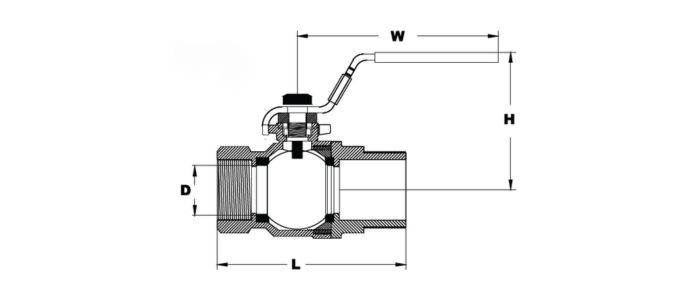

Technical Specification
SIZE L H
mm inch mm inch
15MM/1/2″ 70 2.76 60 2.36
20MM/3/4″ 76.5 3.01 68 2.67
25MM/1″ 100 3.93 68 2.67
32MM/1-1/4″ 110.5 4.35 82 3.22
40MM/1-1/2″ 117 4.60 86 3.38
50MM/2″ 135.5 5.32 94 3.70

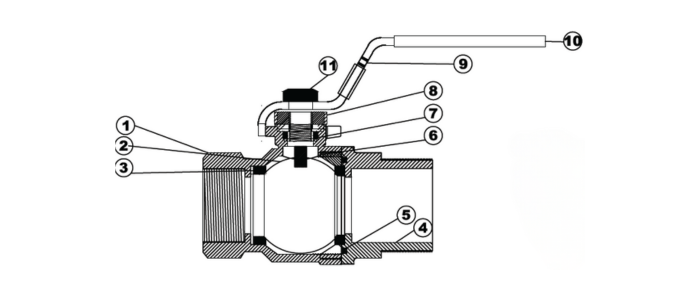

Technical Specification
S.NO PART’S NAME MATERIAL SPECIFICATION QTY
1 BODY STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB 1
2 BALL STAINLESS STEEL ASTM A351 GR.CF8/CF8M/ ASTM A276 GR. 304/316 1
3 BALL SEAT PTFE BS 6564 2
4 HOSE END CONNECTOR/NUT STAINLESS STEEL/ CARBON STEEL ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB 1
5 CAP/NUT/SEAL PTFE BS 6564 1
6 STEM/SPINDLE STAINLESS STEEL ASTM A276 GR. 304/316 1
7 THRUST WASHER/PACKING PTFE BS 6564 2
8 GLAND NUT STAINLESS STEEL AISI 202/304/316 1
9 HANDLE STAINLESS STEEL/ CARBON STEEL AISI 202/304/316 1
10 SLEEVE PVC BS 6576 1
11 HANDLE LOCK NUT STAINLESS STEEL AISI 304/316 1
NOTE: Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
