Stainless Steel Y Strainer Flanged End

Key Features

  • Body Style: Y-Type with Integrated Flanges
  • Bore: Full Bore
  • Casting: Precision Investment Casted

Technical Specifications

    • Size Range: 1” to 4” (DN 25 to DN 100)
    • Working Pressure: 800 WOG (Water, Oil, Gas) .
    • Temperature Range: -10°C to +100°C .
    • Body Style: Y-Type with Integrated Flanges
    • Bore: Full Bore
    • Casting: Precision Investment Casted
    • Threading Standards: BS 21 BSP/BSPT, NPT, DIN 2

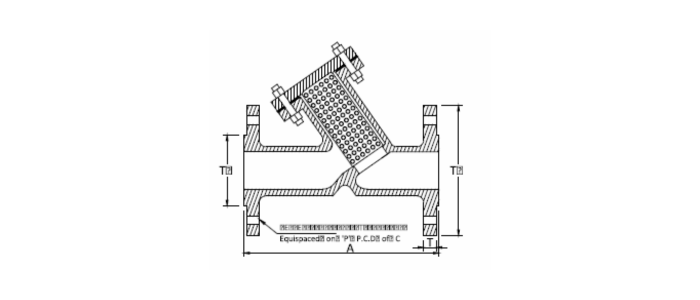

Technical Specification
SIZE 25MM/1″ 32MM/1-1/4″ 40MM/1-1/2″ 50MM/2″ 65MM/2-1/2″ 80MM/3″ 100MM/4″
A (MM) 127 139 165 203 216 241 292
A (INCH) 5 5.47 6.49 7.99 8.5 9.48 11.4
ØD (MM) 108 117.5 127 152.5 178 190.5 229
ØD (INCH) 4.25 4.62 5 6 7 7.5 9.01
T (MM) 8 8 9 10 11.5 13 15
T (INCH) 0.31 0.31 0.35 0.39 0.45 0.51 0.59
ØC (MM) 51 63.5 73 92 105 127 157
ØC (INCH) 2 2.5 2.87 3.62 4.13 5 6.18
PCD (MM) 79.4 88.9 98.4 120.7 139.7 152.4 190.5
PCD (INCH) 3.12 3.5 3.87 4.75 5.5 6 7.5
N (MM) 4 4 4 4 4 4 8
N (INCH) 0.16 0.16 0.16 0.16 0.16 0.16 0.31
ØD (MM) 16 16 16 19 19 19 19
ØD (INCH) 0.63 0.63 0.63 0.75 0.75 0.75 0.75

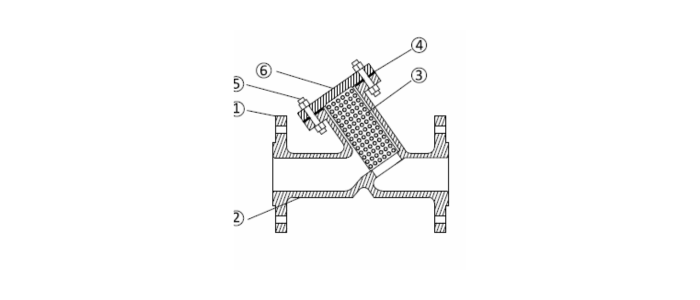

Technical Specification
S.NO PART’S NAME MATERIAL SPECIFICATION QTY
1 STRAINER FLANGE STAINLESS STEEL ASTM A351 GR.CF8/CF8M 2
2 STRAINER BODY STAINLESS STEEL AISI 304/316 1
3 FILTER DOUBLE MESH STAINLESS STEEL AISI 304/316 1
4 TOP CAP SEAL PTFE BS 6564 1
5 TOP CAP NUTS/BOLTS STAINLESS STEEL AISI 304/316 4
6 TOP CAP STAINLESS STEEL ASTM A351 GR.CF8/CF8M 1
NOTE: Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
