Stainless Steel Y Strainer Screwed End
Key Features
- High Pressure Rating: Rated at 800 WOG, suitable for water, oil, and gas applications.
- Versatile Installation: Compatible with major international threading standards for seamless integration.
- Durable Construction: Investment casting ensures high dimensional accuracy and longevity.
Technical Specifications
-
- Size Range: ½” to 2” (DN 15 to DN 50)
- Working Pressure: 200 WOG (Water, Oil, Gas) .
- Temperature Range: -10°C to 100°C .
- Threading Standards: BS 21 BSP/BSPT, NPT, DIN 259/2999, ISO 228, and ISO 7/1.
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| SIZE | L | øD | H | |||
| mm | inch | mm | inch | mm | inch | |
| 15MM/1/2″ | 62 | 2.44 | 15 | 0.59 | 57 | 2.24 |
| 20MM/3/4″ | 77 | 3.03 | 20 | 0.78 | 72 | 2.83 |
| 25MM/1″ | 90 | 3.54 | 25 | 0.98 | 80 | 3.15 |
| 32MM/1-1/4″ | 102 | 4.01 | 32 | 1.26 | 94 | 3.58 |
| 40MM/1-1/2″ | 115 | 4.52 | 40 | 1.65 | 102 | 4.01 |
| 50MM/2″ | 136 | 5.35 | 50 | 1.97 | 135 | 5.31 |
| Technical Specification | ||||
|---|---|---|---|---|

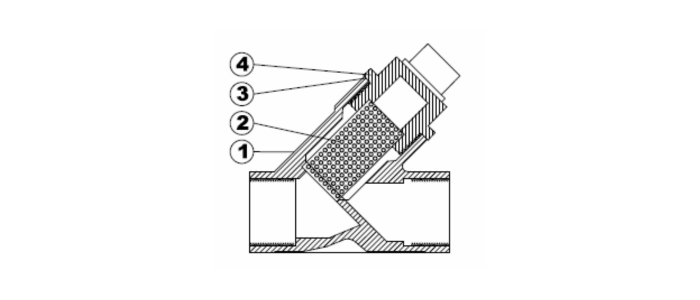

| S. No | PARTS NAME | MATERIAL | SPECIFICATION | QTY |
| 1 | BODY | STAINLESS STEEL | ASTM A351 GR.CF8 /CF8M | 1 |
| 2 | FILTER | STAINLESS STEEL | AISI 304/ 316 | 1 |
| 3 | GASKET / SEAL | PTFE | BS 6564 | 1 |
| 4 | TOP CAP | STAINLESS STEEL | AISI 304/ 316 | 1 |
NOTE: Due to continuous developments & upgrades, data mentioned
above is subject to change without any notice.
